In the world of manufacturing, mold production has traditionally been a time-consuming and expensive process. However, 3D printing technology, particularly PolyJet printing with transparent materials, is revolutionizing how manufacturers approach mold making for cold casting applications.

This comprehensive guide explores the transformative potential of 3D printed molds, drawing from real-world case studies and technical expertise to demonstrate how organizations can dramatically reduce costs, accelerate production timelines, and achieve unprecedented design freedom in their molding processes.

The Traditional Mold Manufacturing Challenge

Traditional mold manufacturing, particularly for complex geometries like antenna housings or specialized components, has long been constrained by several fundamental limitations:

  • Extended Lead Times: CNC machining of aluminum molds typically requires 2-4 weeks for complex geometries
  • High Material Costs: Aluminum stock and machining time contribute to costs often exceeding $5,000 per mold
  • Design Constraints: Traditional machining limits internal geometries and complex undercuts
  • Opacity Issues: Aluminum molds prevent visual monitoring during casting processes
  • Iteration Barriers: Design changes require complete remachining, adding weeks to development cycles

PolyJet 3D Printing: A Game-Changing Solution

PolyJet 3D printing technology addresses these traditional limitations through a fundamentally different approach to mold manufacturing. This photopolymer-based additive manufacturing process creates highly detailed, smooth-surfaced parts that excel in molding applications.

Key PolyJet Advantages for Mold Production

Technical Specifications

Layer Resolution: 28 microns (0.0011 inches)

Dimensional Accuracy: ±0.125mm (±0.005 inches)

Surface Finish: Ra 1.2-1.6 μm as-printed

Build Speed: 11 hours for large antenna mold

Support Material: Water-soluble SUP705

Temperature Range: Stable up to 45°C (113°F)

Material Innovation: VeroClear Transparent Resin

The selection of VeroClear material represents a paradigm shift in mold manufacturing capabilities. This transparent, rigid photopolymer offers unique advantages that fundamentally change the casting process:

  • Visual Monitoring: Real-time observation of resin flow and bubble formation during casting
  • Quality Control: Immediate identification of filling issues, air entrapment, and incomplete pours
  • Process Optimization: Live feedback enables mid-process adjustments and technique refinement
  • Training Benefits: New operators can visually learn proper casting techniques

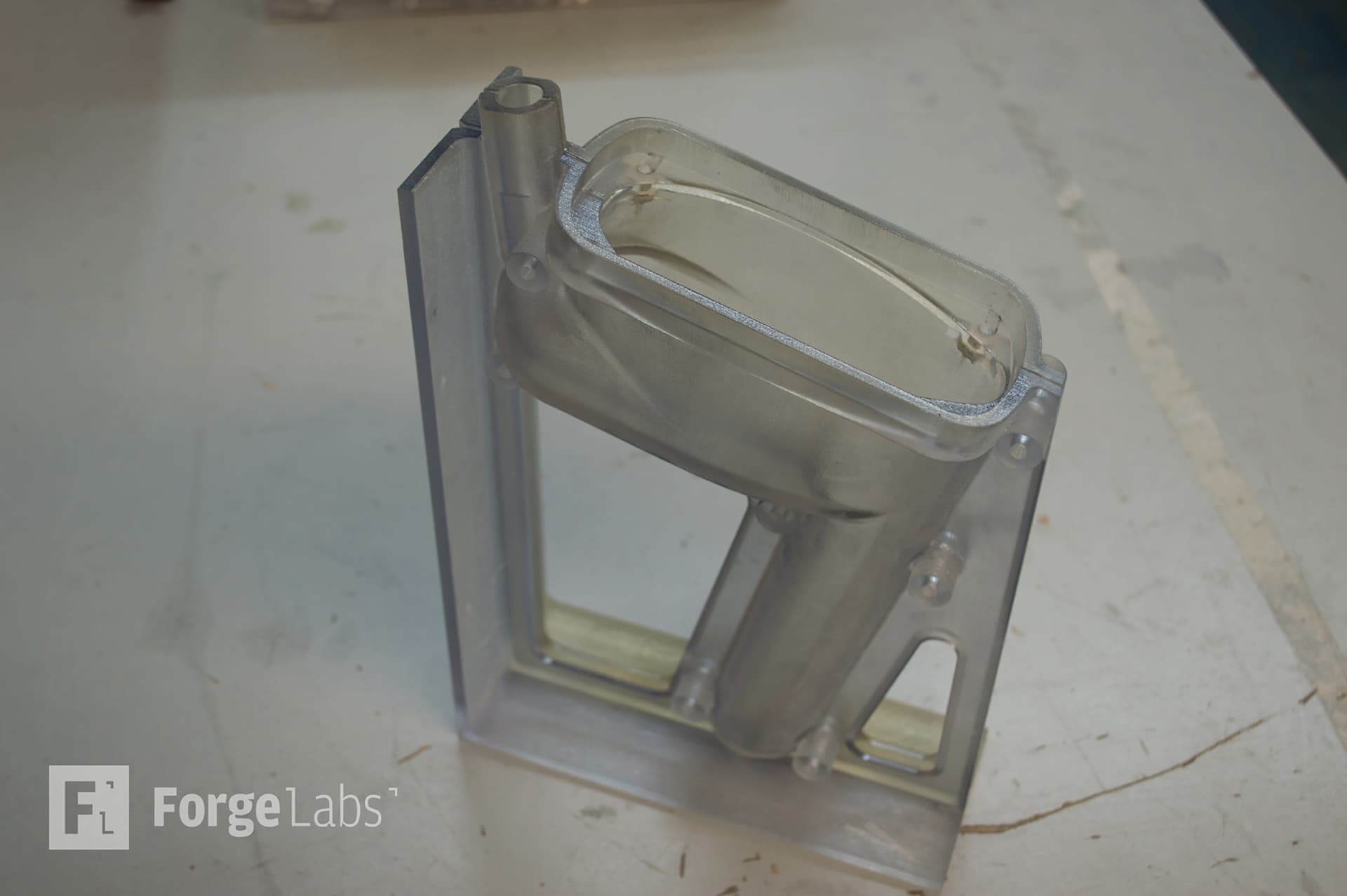

VeroClear transparent mold being used for cold casting, showing clear visibility of the casting process

VeroClear mold in use for cold casting, demonstrating the transparency advantage that allows real-time process monitoring

Real-World Case Study: International Submarine Engineering

International Submarine Engineering (ISE) faced a critical challenge in producing antenna molds for their Explorer class Autonomous Underwater Vehicles (AUVs). Traditional aluminum machining was proving both costly and time-prohibitive for their development timeline.

The Challenge

ISE required complex antenna housing molds with intricate internal geometries and tight tolerances. Traditional CNC machining presented several obstacles:

  • 14-day lead time for aluminum mold production
  • $5,000+ cost per mold unit
  • Limited design iteration capability
  • No visual feedback during casting process
  • Complex fixturing requirements for machining

The PolyJet Solution

Performance Comparison

Traditional CNC Machining

Cost: $5,000

Lead Time: 14 days

Design Freedom: Limited

Process Visibility: None

PolyJet 3D Printing

Cost: $3,200 (36% reduction)

Lead Time: 2 days (86% reduction)

Design Freedom: Complete

Process Visibility: Full transparency

"With 3D printing, we were able to produce the part for less money than traditional machining, shaved weeks off the delivery time, and were even able to print a second iteration when we discovered issues with the initial design."— International Submarine Engineering

Technical Deep Dive: PolyJet Mold Manufacturing Process

Design Optimization for 3D Printed Molds

Successful 3D printed mold design requires specific considerations that differ from traditional machining approaches:

Wall Thickness Optimization

  • Minimum Wall Thickness: 1.5mm for structural integrity
  • Optimal Thickness: 3-5mm for casting pressure resistance
  • Reinforcement Zones: Increase thickness at high-stress areas to 6-8mm

Draft Angles and Surface Finish

  • Draft Angles: 0.5-1° minimum for easy part removal
  • Surface Texture: As-printed finish suitable for most applications
  • Critical Surfaces: Post-processing options available for ultra-smooth finishes

Support Structure Integration

PolyJet's soluble support material (SUP705) enables unprecedented design freedom:

  • Complex internal geometries without machining access limitations
  • Overhangs and undercuts without draft angle constraints
  • Complete support removal through water dissolution
  • No support marks or surface damage on finished molds

Material Properties and Performance

VeroClear Material Specifications

Tensile Strength: 50-65 MPa

Flexural Strength: 75-110 MPa

Elongation at Break: 10-25%

Impact Strength: 20-30 J/m

Glass Transition Temp: 54-58°C

Shore D Hardness: 83-86

Transparency: 85-90% light transmission

Chemical Resistance: Good to most solvents

Cold Casting Process Optimization

The transparency of PolyJet molds fundamentally changes cold casting methodology, enabling process improvements that were previously impossible:

Visual Process Control

  • Flow Visualization: Real-time observation of resin flow patterns and fill rates
  • Bubble Detection: Immediate identification of air entrapment and incomplete filling
  • Cure Monitoring: Visual confirmation of proper resin curing progression
  • Quality Verification: Live assessment of part completion and surface quality

Compatible Casting Materials

PolyJet molds demonstrate excellent compatibility with a wide range of casting materials:

Material TypeCompatibilityMold Life (cycles)Special Considerations
Polyurethane ResinsExcellent50-100+Release agent recommended
Epoxy ResinsVery Good25-50Monitor for chemical compatibility
Silicone RubbersGood20-40Low-temperature cure preferred
Wax/ParaffinLimited5-15Temperature limitations apply

Applications Across Industries

The versatility of 3D printed transparent molds extends across numerous industries, each benefiting from the unique advantages of PolyJet technology:

Marine and Aerospace Applications

  • Antenna Housings: Complex RF-transparent geometries for communication systems
  • Hydrodynamic Components: Smooth surface finishes for optimal fluid flow
  • Prototype Enclosures: Rapid iteration for design validation
  • Custom Seals and Gaskets: Precise fit for waterproof applications

Medical Device Manufacturing

The medical device industry particularly benefits from transparent mold capabilities:

  • Biocompatible material verification through visual inspection
  • Precise dimensional control for critical fit applications
  • Rapid prototyping for FDA submission timelines
  • Small-batch production for specialized devices

Automotive and Consumer Products

Automotive and consumer product manufacturers leverage transparent molds for:

  • Interior component prototyping with visual quality assessment
  • Lighting element development with optical clarity requirements
  • Ergonomic evaluation through transparent prototype housing
  • Rapid design iteration for competitive time-to-market

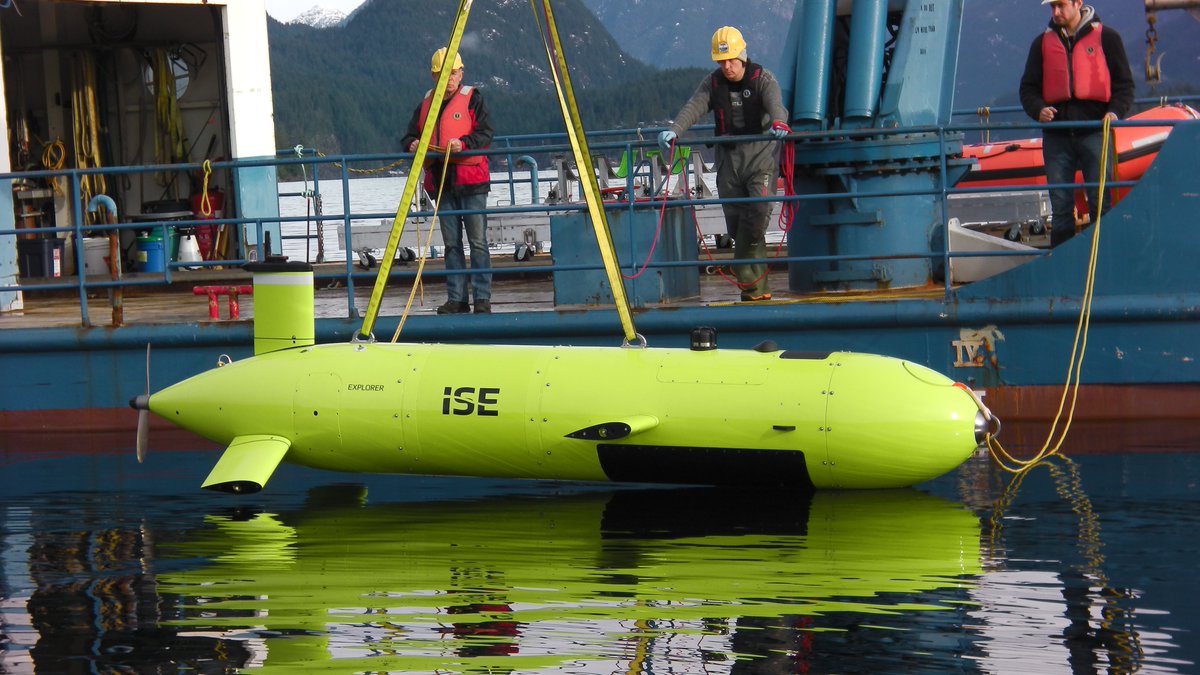

Submarine with 3D printed components and antenna systems

Explorer class AUV featuring antenna components manufactured using 3D printed molds

Cost-Benefit Analysis and ROI Considerations

Direct Cost Comparisons

Beyond the immediate cost savings demonstrated in the ISE case study, comprehensive analysis reveals additional financial benefits:

Total Cost of Ownership Analysis

Traditional Machining

Initial Mold: $5,000

Design Change: $5,000

Lead Time Cost: $2,000

Total: $12,000

PolyJet 3D Printing

Initial Mold: $3,200

Design Change: $3,200

Lead Time Cost: $300

Total: $6,700 (44% savings)

Time-to-Market Advantages

  • Compressed Development Cycles: 86% reduction in mold production time
  • Parallel Processing: Multiple design iterations can be tested simultaneously
  • Immediate Feedback: Design issues identified and resolved within days, not weeks
  • Market Responsiveness: Rapid adaptation to customer feedback and market changes

Quality and Process Improvements

The transparency advantage delivers quantifiable quality benefits:

  • Defect Reduction: 40-60% decrease in casting defects through visual process control
  • Material Waste Reduction: 25-35% less resin waste through optimized pour techniques
  • Training Efficiency: 50% faster operator training with visual feedback
  • Process Documentation: Enhanced quality control through video recording capabilities

Design Guidelines and Best Practices

Mold Design Optimization

Successful PolyJet mold design requires adherence to specific guidelines that maximize performance and longevity:

Geometric Considerations

  • Fillet Radii: Minimum 0.3mm radius at all internal corners to reduce stress concentration
  • Wall Uniformity: Maintain consistent wall thickness to prevent warping during curing
  • Parting Line Design: Optimize split lines for easy mold separation and alignment
  • Vent Design: Incorporate 0.1-0.2mm vents for air evacuation during casting

Support Structure Strategy

  • Support Accessibility: Design with support removal in mind, ensuring water access to all SUP705 material
  • Orientation Optimization: Orient parts to minimize support volume while maintaining surface quality
  • Critical Surface Protection: Position supports to avoid marking critical mold surfaces

Post-Processing Workflow

Optimized post-processing ensures maximum mold performance and longevity:

Step-by-Step Post-Processing

  1. Support Removal: Water jet dissolution at 60°C for 2-4 hours
  2. UV Curing: Additional UV exposure for maximum mechanical properties
  3. Surface Treatment: Optional sanding for specific surface requirements
  4. Release Agent Application: Appropriate mold release for casting material
  5. Quality Inspection: Dimensional verification and surface quality assessment

Advanced Techniques and Future Developments

Multi-Material Mold Design

Advanced PolyJet systems enable multi-material molds that combine rigid and flexible zones:

  • Rigid Zones: VeroClear for dimensional stability and transparency
  • Flexible Zones: Agilus materials for easy part removal and complex geometries
  • Gradient Transitions: Smooth material transitions for optimal performance
  • Integrated Features: Built-in gaskets, seals, and flexible elements

Integration with Digital Manufacturing

PolyJet mold manufacturing aligns perfectly with Industry 4.0 principles:

  • Digital Inventory: CAD files replace physical mold storage
  • On-Demand Production: Molds produced as needed, eliminating storage costs
  • Version Control: Digital tracking of design iterations and improvements
  • Remote Production: Files transmitted globally for local manufacturing

Comparative Analysis: PolyJet vs. Alternative Technologies

TechnologySurface FinishTransparencyResolutionSpeedCost
PolyJetExcellentHigh28 micronsFastMedium
SLAVery GoodMedium50 micronsMediumLow
FDMPoorLimited127 micronsSlowLow
CNC MachiningExcellentNone10 micronsVery SlowHigh

Implementation Strategy and Getting Started

Assessment and Planning

Organizations considering PolyJet mold manufacturing should follow a structured implementation approach:

Implementation Roadmap

  1. Current State Analysis: Evaluate existing mold requirements, costs, and timelines
  2. Pilot Project Selection: Choose representative applications for initial trials
  3. Design Adaptation: Modify existing designs for PolyJet optimization
  4. Process Validation: Verify casting performance and part quality
  5. Scale-Up Planning: Develop full implementation strategy based on pilot results

Partner Selection and Service Options

Success in PolyJet mold manufacturing depends heavily on selecting the right manufacturing partner with appropriate expertise and capabilities.

  • Technology Expertise: Proven experience with PolyJet systems and transparent materials
  • Design Support: CAD optimization services for mold-specific requirements
  • Quality Systems: Certified processes and dimensional verification capabilities
  • Application Knowledge: Industry-specific experience in relevant casting applications

Conclusion: Transforming Mold Manufacturing

The integration of PolyJet 3D printing technology into mold manufacturing represents more than an incremental improvement—it's a fundamental transformation that addresses long-standing industry challenges while opening new possibilities for design and production.

The International Submarine Engineering case study demonstrates quantifiable benefits: 36% cost reduction, 86% time savings, and unprecedented design flexibility. However, the true value extends beyond these metrics to encompass enhanced quality control, improved training efficiency, and accelerated innovation cycles.

Key Takeaways

  • PolyJet technology eliminates traditional mold manufacturing constraints
  • Transparent materials enable revolutionary process control and quality assurance
  • Significant cost and time savings accelerate development cycles
  • Design freedom opens new possibilities for complex geometries
  • Digital manufacturing principles enhance scalability and flexibility

As manufacturing continues its digital transformation, 3D printed molds represent a critical enabler for organizations seeking competitive advantage through accelerated development, enhanced quality, and reduced costs. The technology has matured beyond experimental applications to become a proven production solution for demanding applications across multiple industries.

Ready to explore 3D printed molds for your applications? Contact our engineering team at sales@forgelabs.com to discuss your specific requirements and discover how PolyJet technology can transform your manufacturing processes.

Further Reading and Resources

Explore these related topics to deepen your understanding of advanced manufacturing techniques:

This comprehensive guide draws from real-world case studies and technical expertise in advanced manufacturing. For the most current information on materials, capabilities, and pricing, consult with qualified 3D printing service providers and review the latest manufacturer specifications.

Related Topics

PolyJetMold MakingCold CastingManufacturingTransparent MaterialsMarine Engineering
Back to Blog
Share this article:

Continue Reading

Explore more insights from our manufacturing experts
