Technology Clarification: While FDM and FFF may appear similar, industrial FDM systems deliver vastly superior accuracy (±0.127mm), material performance, and quality control compared to hobbyist FFF printers, enabling true engineering applications.
When most people hear "3D printing," what often comes to mind is the accessible, budget-friendly Fused Filament Fabrication (FFF) technology popular among hobbyists. However, behind the scenes, a more advanced and precise technology—Fused Deposition Modeling (FDM)—has been revolutionizing industries from aerospace to healthcare. Although both may seem similar at first glance, they are worlds apart in capabilities, precision, and applications.
FDM vs FFF: Industrial precision versus consumer accessibility in 3D printing technology
Historical Context: The Evolution of Extrusion-Based 3D Printing
Fused Deposition Modeling (FDM), developed by Stratasys, has existed since 1988. Despite its early development, it wasn't until more than two decades later that the technology truly began to flourish and gain widespread recognition. The catalyst for this transformation was the expiration of the FDM patent in 2009, which opened the floodgates for lower-cost alternatives.
The Patent Expiration Impact
The 2009 patent expiration enabled the emergence of Fused Filament Fabrication (FFF) printers—similar but distinct technology that made 3D printing accessible to the general public. This democratization sparked heightened conversations and interest in 3D printing technology, reaching a peak around 2014 when media attention made 3D printing practically commonplace among hobbyists and tinkerers.
Industrial FDM (Pre-2009)
- Early Adopters: GE, Airbus, BMW, Ford
- Applications: Specialized low-volume manufacturing
- Equipment: Large, industrial-grade machines
- Focus: Engineering performance and reliability
Consumer FFF (Post-2009)
- Target Market: Hobbyists and makers
- Applications: Prototyping and personal projects
- Equipment: Desktop, budget-friendly machines
- Focus: Accessibility and affordability
The Perception Problem
For engineers, designers, and professionals who first encounter 3D printing through budget-friendly FFF printers, there's a risk of developing a skewed perception of the technology's capabilities. If their first experience yields subpar quality in terms of strength, surface finish, or structural integrity, they may become disillusioned with 3D printing as a whole, potentially missing the vastly superior capabilities of industrial FDM systems.
Common Misconceptions from FFF Experience
- Limited Accuracy: Believing all 3D printing has poor tolerances
- Weak Materials: Assuming 3D printed parts are inherently fragile
- Poor Surface Finish: Expecting visible layer lines and rough surfaces
- Limited Applications: Thinking 3D printing is only for prototypes
- Reliability Issues: Expecting frequent failures and inconsistent results
What Makes FDM Superior?
Fused Deposition Modeling machines are large, enclosed systems designed to create parts that require high-quality, engineering-grade prototypes capable of withstanding mechanical loads. The Stratasys Fortus series represents the pinnacle of FDM technology, specifically engineered for industrial applications with capabilities that far exceed consumer FFF systems.

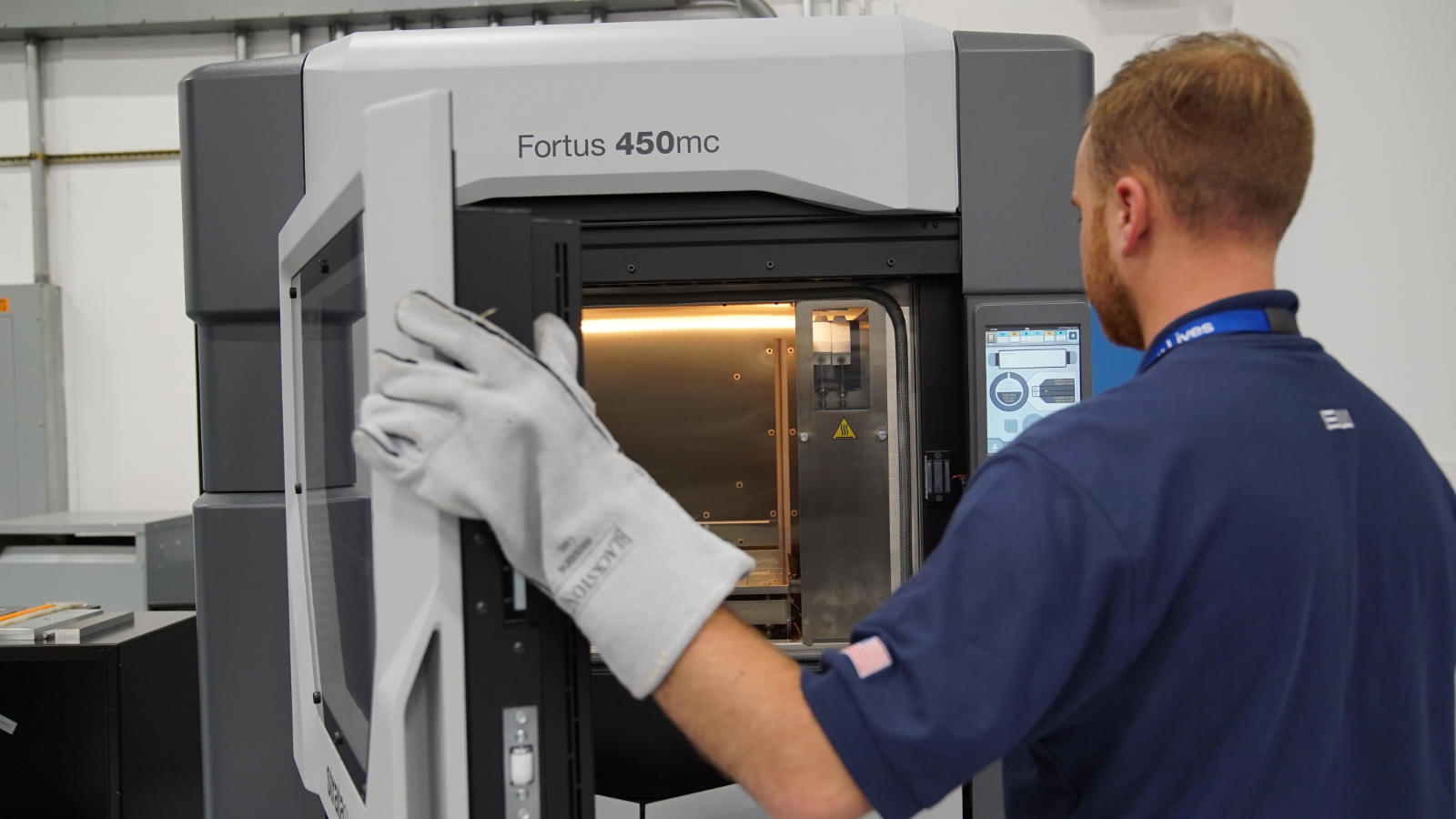

Inside the Stratasys Fortus 450: Industrial-grade FDM technology with heated chamber and precision controls
Superior Accuracy and Precision
Stratasys FDM machines set exceptional standards in the 3D printing industry. Parts printed using Stratasys FDM technology can achieve impressive accuracy of ±0.127mm (±0.005"), making them among the most precise 3D printers available on the market.
| Technology | Typical Accuracy | Applications | Industry Use |
|---|---|---|---|
| Industrial FDM | ±0.127mm (±0.005") | Aerospace components, medical devices | Professional manufacturing |
| Consumer FFF | ±0.3-0.5mm (±0.012-0.020") | Form validation, visual prototypes | Hobbyist and educational |
This level of precision is particularly advantageous for applications requiring extremely tight tolerances, such as aerospace components, medical devices, and complex engineering prototypes. The high accuracy can make a significant difference in final product performance and reliability, allowing engineers to create components that meet stringent industry standards.
Advanced Thermal Management
In FDM systems, the deposition process takes place within a specialized print chamber maintained at specific temperatures—around 90°C for ABS or even higher for advanced materials like PEEK. This chamber is fully isolated from the surrounding environment, enabling a smooth thermal transition that significantly enhances mechanical properties.

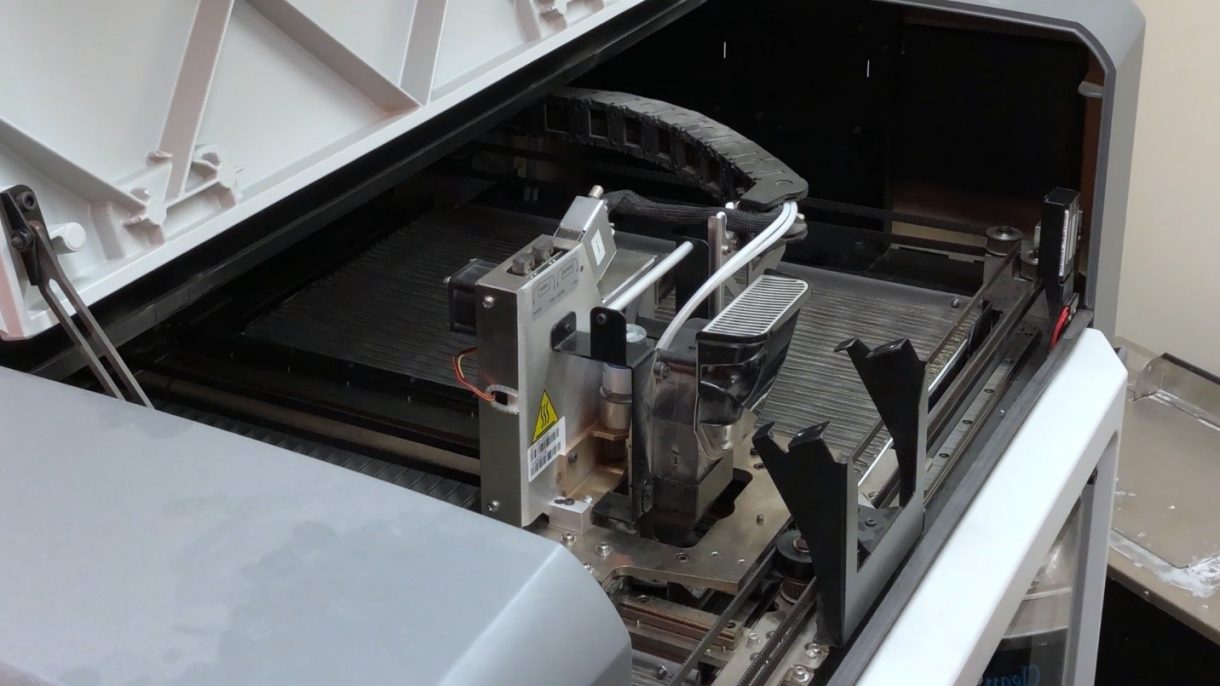

FDM print head assembly: Precision engineering for consistent thermal control and material deposition
Thermal Transition Advantages
FDM: Hot-to-Hot Transition
- Extruder Temperature: ~320°C
- Chamber Temperature: 90°C+ (material dependent)
- Build Platform: Heated and controlled
- Result: Enhanced layer adhesion, minimal warping
- Mechanical Properties: Superior strength and durability
FFF: Hot-to-Cold-to-Hot Transition
- Extruder Temperature: Variable
- Chamber Temperature: Ambient (uncontrolled)
- Build Platform: Heated bed only
- Result: Residual stresses, warping potential
- Mechanical Properties: Compromised consistency
Patent-Protected Thermal Separation
The absence of heated chambers in FFF printers isn't merely a design choice but a legal limitation due to Stratasys' patent on thermal separation between the heated build chamber and the gantry controlling motion. In Stratasys FDM printers, motors are situated outside the enclosed chamber, ensuring a uniformly heated environment without mechanical interference.
Superior Quality Control and Material Standards
FDM technology can utilize some of the most robust and durable plastic materials available commercially, including Polycarbonate, Nylon, ULTEM, and PEEK. This capability stems from FDM's enclosed chamber design and stringent quality control measures in filament manufacturing.

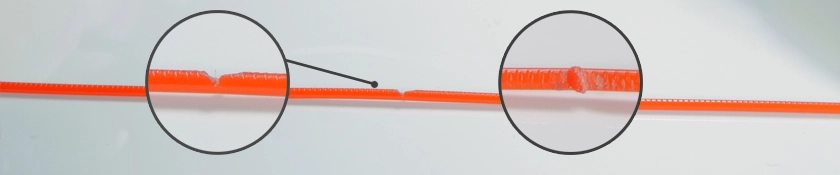

Advanced filament quality control: Laser-based monitoring ensures consistent diameter and material properties
Filament Manufacturing Standards
Unlike generic hobbyist-level filaments, those designed for FDM printers adhere to stringent ISO guidelines for quality and traceability. This ensures consistent diameter and cross-sectional area throughout the filament length, crucial for accurate and reliable 3D printing.
FDM Filament Quality Standards
- Diameter Tolerance: ±0.025mm or better
- Cross-sectional Consistency: Maintained circular profile
- Material Certification: ISO compliance and traceability
- Quality Control: Laser-based real-time monitoring
- Batch Testing: Mechanical property validation
- Storage Standards: Controlled environment packaging
In contrast, lower-cost filaments for FFF printers often sacrifice consistency for affordability. Variable cross-sectional areas due to looser manufacturing standards can lead to inconsistencies in surface quality, mechanical properties, and overall part accuracy.
Advanced Support Material Systems
FDM technology's dual extrusion capabilities enable exceptionally broad geometric possibilities through specialized soluble support materials. These supports can be quickly and easily dissolved in heated ultrasonic tanks, eliminating the need for manual post-processing and reducing the risk of part damage.
Stratasys soluble support materials enable complex geometries with clean removal and professional finish
Support Material Comparison
| Aspect | FDM (Stratasys) | FFF (Generic) |
|---|---|---|
| Support Materials | Engineered soluble supports (HIPS, PVA variants) | Basic PVA (limited temperature range) |
| Temperature Compatibility | High-temp materials (PEEK, ULTEM) | PLA compatible only |
| Removal Process | Ultrasonic dissolution | Manual removal or water dissolution |
| Surface Quality | Excellent finish, no manual marks | Variable, may require finishing |
| Complex Geometries | Highly complex, internal features | Limited by support limitations |
Material Capabilities and Engineering Applications
Advanced Engineering Thermoplastics
FDM technology's thermal control capabilities enable the use of high-performance engineering materials that are impossible to print reliably on FFF systems. These materials open up applications in demanding industries where mechanical properties and regulatory compliance are critical.
FDM Material Portfolio
- PEEK: Aerospace, medical implants
- ULTEM: Aircraft interiors, electronics
- Polycarbonate: Automotive, industrial housings
- Nylon (PA): Mechanical components, gears
- ASA: Outdoor applications, UV resistance
- ABS-M30: Production-grade ABS variant
FFF Material Limitations
- PLA: Limited temperature resistance
- ABS: Warping issues without heated chamber
- PETG: Good properties but limited applications
- High-temp Materials: Generally not feasible
- Engineering Plastics: Inconsistent results
- Certified Materials: Limited availability
Industry Applications and Standards
The superior capabilities of FDM technology enable applications in highly regulated industries where FFF systems simply cannot meet requirements. These applications often require not just mechanical performance but also material traceability and certification.
FDM Industry Applications
Aerospace
- • Aircraft interior components
- • Engine bay housings
- • Satellite components
- • UAV structural elements
Medical
- • Surgical instruments
- • Biocompatible implants
- • Medical device housings
- • Patient-specific solutions
Automotive
- • Under-hood components
- • Interior trim pieces
- • Functional prototypes
- • Low-volume production
Industrial
- • Manufacturing fixtures
- • Chemical-resistant housings
- • Electrical enclosures
- • High-temperature applications
Economic Considerations and ROI
Total Cost of Ownership Analysis
While FDM systems require higher initial investment, their superior capabilities often deliver better return on investment for professional applications through reduced rework, higher success rates, and broader material capabilities.
| Cost Factor | FDM (Industrial) | FFF (Consumer) | Impact |
|---|---|---|---|
| Initial Investment | $200,000-$500,000+ | $200-$5,000 | Higher barrier to entry |
| Material Cost | $300-$1000/kg | $20-$100/kg | Higher operational cost |
| Success Rate | 95-99% | 60-85% | Reduced waste and rework |
| Labor Requirements | Minimal operator intervention | Frequent monitoring required | Lower labor cost per part |
| Post-Processing | Automated support removal | Manual finishing required | Time and labor savings |
Value Proposition for Different Market Segments
Enterprise/Industrial
- FDM Preferred: High-stakes applications
- Justification: Quality, reliability, materials
- ROI: Reduced development time and risk
- Applications: End-use parts, tooling
SME/Professional
- Mixed Approach: Technology based on needs
- Considerations: Application requirements
- Strategy: FDM for critical, FFF for concepts
- Growth Path: Start FFF, upgrade to FDM
Educational/Hobbyist
- FFF Appropriate: Learning and experimentation
- Benefits: Low cost, accessibility
- Limitations: Accept quality constraints
- Evolution: Understanding leads to FDM appreciation
Technology Selection Guidelines
Decision Framework for Technology Choice
Selecting between FDM and FFF requires careful consideration of application requirements, quality standards, and business objectives. The following framework can help guide technology selection decisions.
Choose FDM When:
- Precision Required: Tolerances tighter than ±0.2mm
- Engineering Materials: High-performance thermoplastics needed
- Regulatory Compliance: Certified materials and traceability required
- Complex Geometries: Internal features, overhangs, or intricate designs
- Production Intent: Parts for end-use applications
- Reliability Critical: High success rates and consistency essential
- Professional Applications: Aerospace, medical, automotive industries
Choose FFF When:
- Concept Validation: Form, fit, and basic function testing
- Budget Constraints: Low initial investment requirements
- Educational Purposes: Learning and experimentation
- Simple Geometries: Basic shapes without complex features
- Non-critical Applications: Hobbyist projects and prototypes
- Material Flexibility: Standard PLA, ABS, PETG sufficient
- Rapid Iteration: Quick design changes and testing
Migration Path from FFF to FDM
Many organizations begin with FFF technology and migrate to FDM as their requirements become more demanding. Understanding this evolution helps in making informed long-term technology investments.
- Initial Exploration: Start with FFF for basic prototyping and learning
- Requirement Assessment: Identify limitations and quality needs
- Application Development: Evaluate specific use cases for FDM
- Business Case Development: Calculate ROI for FDM investment
- Technology Transition: Implement FDM for critical applications
- Hybrid Approach: Maintain both technologies for different uses
Future Outlook and Technology Evolution
Convergence and Divergence Trends
As both FDM and FFF technologies continue to evolve, we're seeing both convergence in some areas and increasing divergence in others. Understanding these trends helps in making informed technology investment decisions.
FDM Evolution
- Material Innovation: New high-performance polymers
- Process Improvements: Enhanced thermal control
- Automation Advances: Reduced operator intervention
- Quality Systems: Real-time monitoring and control
- Integration: Industry 4.0 connectivity
FFF Evolution
- Accessibility Improvements: Easier operation
- Quality Enhancements: Better reliability
- Material Expansion: Broader polymer selection
- Cost Reduction: More affordable systems
- Educational Integration: Curriculum development
Market Positioning and Coexistence
Rather than one technology replacing the other, FDM and FFF are likely to coexist, serving different market segments and applications. Understanding this ecosystem helps organizations make appropriate technology choices.
Technology Ecosystem Outlook
Professional/Industrial Segment
FDM technology continues to advance with focus on materials, precision, and integration with manufacturing workflows. Growth driven by Industry 4.0 and regulatory requirements.
Consumer/Educational Segment
FFF technology improves in reliability and ease of use while maintaining cost advantages. Market expansion through education and maker community adoption.
Convergence Areas
Software workflows, design tools, and some material technologies show convergence, enabling easier transition between technologies as needs evolve.
Ready to explore industrial FDM capabilities? Our expert team can help you evaluate whether FDM technology is right for your applications. Contact us at sales@forgelabs.com to discuss your specific requirements and arrange a consultation or sample parts evaluation.
Conclusion: Understanding the Technology Spectrum
The distinction between FDM and FFF represents more than just nomenclature—it reflects fundamental differences in capability, application scope, and market positioning. While FFF technology has democratized 3D printing and serves important educational and hobbyist markets, FDM technology continues to push the boundaries of what's possible in additive manufacturing for professional applications.
For engineers, designers, and manufacturers evaluating 3D printing technologies, understanding these differences is crucial for making informed decisions. The superior accuracy, material capabilities, thermal control, and quality systems of FDM technology enable applications that are simply not feasible with FFF systems, justifying the higher investment for professional use cases.
Key Takeaways
- FDM offers ±0.127mm accuracy vs FFF's ±0.3-0.5mm
- Heated chambers enable advanced materials and better properties
- Professional quality control ensures consistent results
- Soluble supports enable complex geometries
- Technology choice depends on application requirements
- Both technologies have valid market positions
- Understanding capabilities prevents misconceptions
- Migration path exists from FFF to FDM as needs evolve
As the additive manufacturing industry continues to evolve, both FDM and FFF technologies will advance, but their fundamental positioning—industrial precision versus accessible prototyping—will likely remain distinct. Organizations benefit most from understanding these distinctions and selecting the appropriate technology for their specific applications rather than assuming all extrusion-based 3D printing is equivalent.
