3D Printed Architectural Massing Models: Complete Guide to Additive Architecture and Design Visualization
Architecture & Design15 min read

3D Printed Architectural Massing Models: Complete Guide to Additive Architecture and Design Visualization

Discover how 3D printing is revolutionizing architectural massing models and design visualization. Learn about FDM, SLA, and material selection for rapid prototyping, colored inserts, transparent backlighting, and professional presentation models.

IN

Ian Nakamoto

Designer

Additive Architecture: 3D printing has fundamentally transformed architectural design visualization, enabling rapid iteration, complex geometries, and enhanced client communication through precise physical models.

3D printing has revolutionized the way architectural massing models are created and visualized. What once required days of meticulous handcrafting can now be accomplished in hours with unprecedented accuracy and detail. This transformation has not only accelerated the design process but also expanded the possibilities for architectural expression and client engagement.

Traditionally, constructing physical models was a time-consuming and often imprecise task requiring specialized craftsmanship and extensive material preparation. Modern additive manufacturing offers a quicker, more accurate method for turning digital designs into tangible models, fundamentally changing how architects approach design development and client presentation.

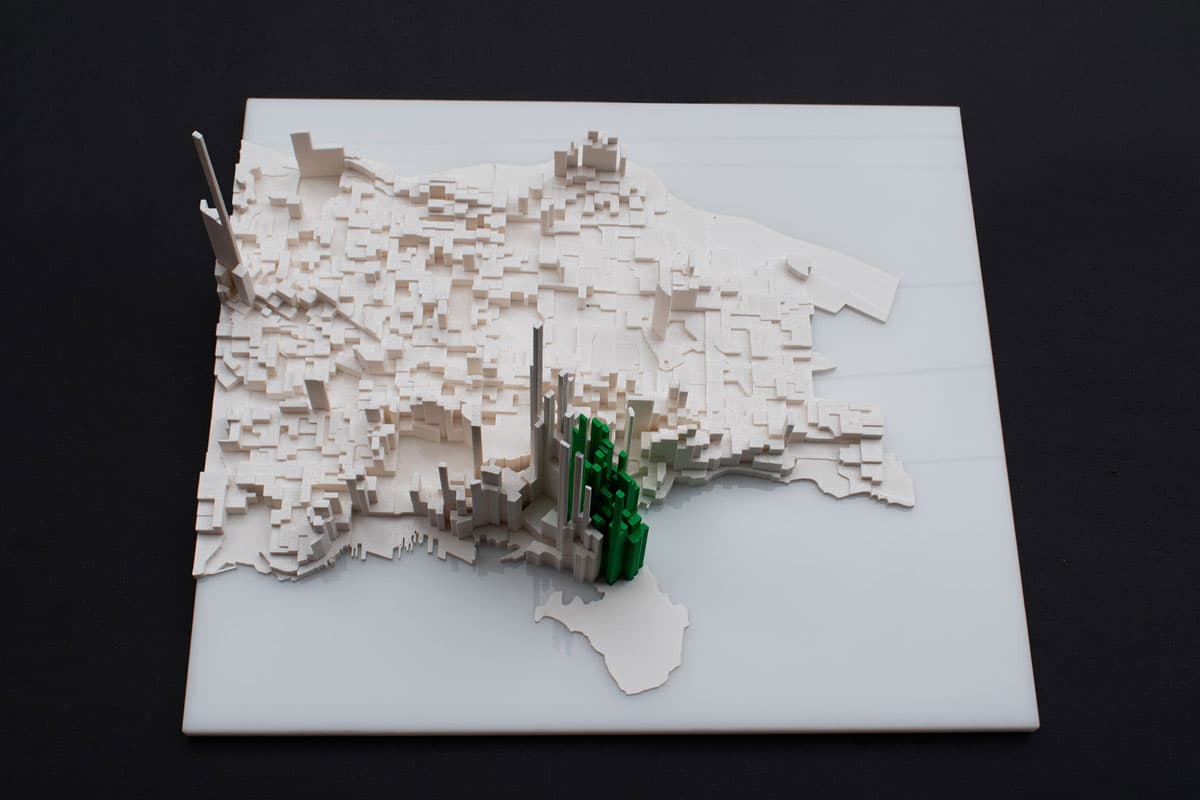

3D printed architectural massing model showing detailed building forms and urban context

Professional architectural massing model demonstrating the precision and detail achievable with modern 3D printing technologies

The Evolution of Architectural Model Making

The shift from traditional model making to digital fabrication represents one of the most significant technological advances in architectural practice. This evolution has implications far beyond simple time savings, fundamentally altering the design process itself.

Traditional Challenges vs. Digital Solutions

Traditional Model Making

  • Time-intensive manual construction
  • Limited precision and repeatability
  • Difficulty with complex geometries
  • Material waste and high costs
  • Challenges with design iterations
  • Skilled craftsperson dependency

3D Printed Models

  • Rapid automated production
  • CAD-level accuracy and consistency
  • Complex forms and internal structures
  • Material efficiency and sustainability
  • Seamless design iteration workflow
  • Democratized access to quality models

Impact on Design Process

3D printing doesn't merely replace traditional model making—it transforms the entire design workflow:

  • Iterative Design: Rapid model production enables multiple design iterations within typical project timelines
  • Early Validation: Physical models can be produced early in the design process for immediate feedback
  • Client Engagement: Tangible models improve client understanding and facilitate better design decisions
  • Stakeholder Communication: Physical models bridge the gap between technical drawings and public understanding
  • Design Exploration: Complex geometries previously impossible to model become feasible options

Technology Selection for Architectural Models

Different 3D printing technologies offer unique advantages for architectural applications. Understanding these capabilities enables optimal technology selection for specific project requirements.

Fused Deposition Modeling (FDM) for Architecture

FDM represents the workhorse technology for architectural massing models, offering an optimal balance of speed, cost, scale capability, and material options.

Why FDM Excels for Architectural Models

  • Large Build Volumes: Accommodate substantial architectural models in single prints
  • Material Variety: Wide range of colors, finishes, and functional materials
  • Rapid Production: Fast print speeds for quick turnaround requirements
  • Cost Effectiveness: Low material costs enable large-scale model production
  • Durability: Robust materials suitable for handling and presentation
  • Post-Processing: Easy finishing, painting, and assembly operations

Forge Labs specializes in architectural printing and file conversions, producing accurate massing models from pre-existing SketchUp, AutoCAD, and Revit files. By optimizing wall thicknesses, removing extraneous elements, and ensuring watertight geometry, we deliver durable, error-free prints without requiring design reconstruction.

Alternative Technologies for Specialized Applications

TechnologyBest ForAdvantagesConsiderations
FDMLarge massing models, concept modelsSpeed, scale, cost, materialsLayer lines, support requirements
SLAHigh-detail models, transparent partsSurface finish, precision, transparencyBuild volume, material cost
SLSComplex geometries, assembliesNo supports, intricate featuresSurface texture, color limitations
PolyJetMulti-material, colored modelsColor variety, smooth finishCost, support removal

Material Selection and Properties

Material choice significantly impacts model functionality, aesthetics, and production cost. Understanding material properties enables optimal selection for specific architectural applications.

Standard FDM Materials for Architecture

ABS (Acrylonitrile Butadiene Styrene)

  • Properties: Durable, impact-resistant, paintable
  • Applications: Presentation models, handling-intensive models
  • Finish: Smooth surface, excellent painting adhesion
  • Colors: Wide range including white, black, gray, colors

ASA (Acrylonitrile Styrene Acrylate)

  • Properties: UV-stable, weather-resistant, durable
  • Applications: Outdoor displays, long-term exhibitions
  • Finish: Matte surface, excellent stability
  • Colors: Natural colors, excellent color retention

Specialized Materials for Advanced Applications

  • PLA (Polylactic Acid): Eco-friendly option with excellent surface finish for presentation models
  • PETG: Chemical resistance and clarity for specialized display requirements
  • Wood-filled Filaments: Natural appearance for conceptual and environmental models
  • Metal-filled Filaments: Realistic metallic finish for structural elements
  • Transparent Materials: Clear PETG or specialized transparent filaments for glazing simulation

Design Enhancement Techniques

Colored Inserts and Multi-Material Approaches

Strategic use of color transforms architectural models from simple form studies into powerful communication tools that highlight key design features and improve stakeholder understanding.

Architectural massing model with colored inserts highlighting different building zones and features

Colored inserts highlight key architectural features and improve design communication in massing models

Color Strategy Applications

  • Programmatic Zones: Different colors for residential, commercial, and public spaces
  • Phasing Visualization: Colors indicating construction phases or development stages
  • Material Representation: Colors simulating actual building materials
  • Feature Highlighting: Accent colors for entrances, circulation, or focal points
  • Context Differentiation: Neutral tones for existing buildings, colors for new construction
  • Data Visualization: Colors representing density, height, or other quantitative data

Implementation Techniques

Several approaches enable effective color integration in architectural models:

  • Multi-Material Printing: Print different components in various materials and colors
  • Assembly Approach: Design models for post-print assembly with colored components
  • Pause-and-Insert: Pause printing to insert colored elements during the build process
  • Post-Processing Painting: Apply colors after printing using appropriate paints and finishes
  • Dual-Extrusion Systems: Simultaneous printing with multiple materials or colors

Transparent Materials and Backlighting

Transparent materials open new possibilities for architectural visualization, enabling sophisticated lighting effects and enhanced spatial understanding.

Accura ClearVue for Professional Applications

For projects requiring backlighting or transparency, we recommend Accura ClearVue—a high-performance SLA material that delivers exceptional optical clarity for professional architectural presentations.

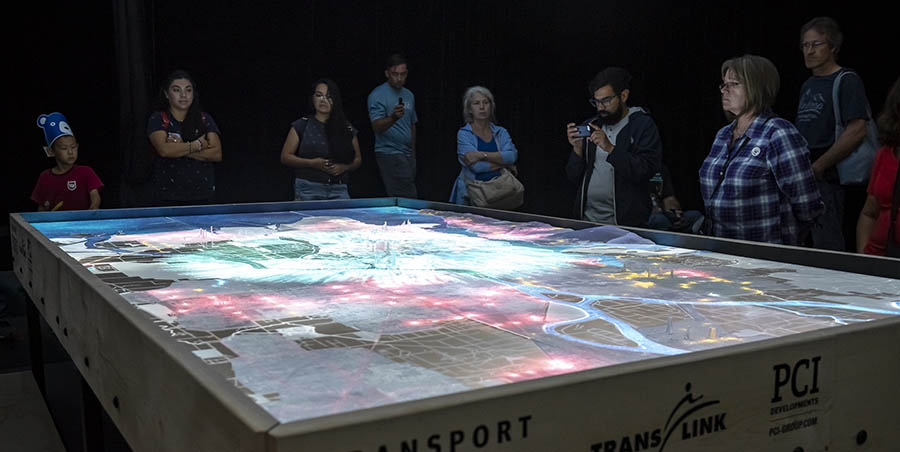

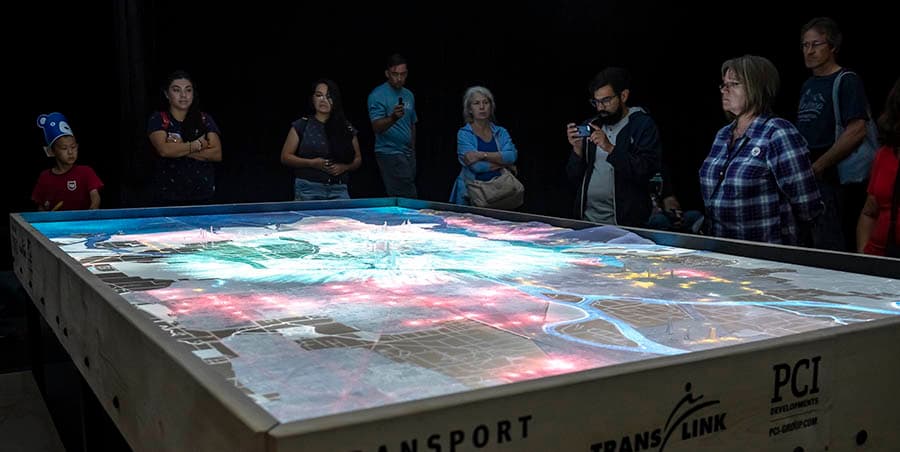

Translink city of the future model with transparent 3D printed elements and integrated backlighting

Translink "City of the Future" model featuring Accura ClearVue transparency enabling complex animations and dynamic lighting systems

Case Study: Translink City of the Future

The Translink project demonstrates the sophisticated possibilities enabled by transparent 3D printing materials. Using Accura ClearVue, we created a backlit display where complex animations played underneath a model representing the "city of the future."

Project Requirements

  • Optical Clarity: Material needed to transmit light without distortion
  • Precision: Accurate reproduction of urban design details
  • Durability: Model required for extended exhibition period
  • Integration: Seamless integration with digital projection systems
  • Scale: Large enough for public viewing while maintaining detail

Technical Considerations for Transparent Models

  • Light Transmission: Material selection affects light quality and distribution
  • Support Structures: Minimal supports required to maintain transparency
  • Post-Processing: Careful finishing to maintain optical properties
  • Integration Systems: Design for LED integration and electrical connections
  • Thermal Management: Consider heat generation from lighting systems

File Preparation and Digital Workflow

Successful 3D printed architectural models begin with proper file preparation and optimization. Understanding the digital-to-physical workflow ensures optimal results and reduces production time.

CAD Platform Integration

We work with all major architectural design platforms, streamlining the transition from design files to physical models:

SketchUp

  • Direct STL export capability
  • Component-based modeling advantages
  • Simple geometry cleanup workflow
  • Plugin integration for optimization

AutoCAD

  • 3D solid modeling capabilities
  • Precise dimensional control
  • Layer-based organization
  • STEP/IGES export options

Revit

  • BIM data integration
  • Parametric model advantages
  • Material assignment capabilities
  • Phase-based visualization

Critical Optimization Steps

Professional model production requires systematic file optimization to ensure printability and quality:

  1. Geometry Validation: Ensure watertight meshes without holes or non-manifold edges
  2. Wall Thickness Optimization: Adjust minimum wall thicknesses for chosen printing technology
  3. Detail Level Assessment: Balance detail level with printing capabilities and scale requirements
  4. Support Structure Planning: Design geometry to minimize support requirements
  5. Scale Optimization: Determine optimal scale balancing detail, size, and cost constraints
  6. File Format Selection: Choose appropriate file formats for intended applications

Common Optimization Challenges

Typical Issues and Solutions

  • Thin Walls: Thicken walls to meet minimum requirements for chosen technology
  • Small Details: Remove or enlarge features below printable resolution
  • Mesh Errors: Repair holes, intersections, and non-manifold geometry
  • File Size: Optimize mesh density for manageable file sizes
  • Material Assignment: Prepare files for multi-material printing workflows
  • Orientation Planning: Consider print orientation during design phase

Production Capabilities and Turnaround

Large-Format FDM Capabilities

With the largest FDM capacity in Western Canada, Forge Labs can accommodate substantial architectural models while maintaining rapid turnaround times. Our production capabilities enable:

  • Large Build Volumes: Models up to 914 × 610 × 914 mm (36 × 24 × 36 inches)
  • Rapid Turnaround: Next-day delivery possible for ready-to-print files
  • Batch Production: Multiple models or components in single builds
  • Material Variety: Extensive inventory of colors and specialized materials
  • Quality Control: Rigorous inspection and finishing processes

Project Timeline Considerations

PhaseTimelineActivitiesDeliverables
File Analysis2-4 hoursGeometry validation, optimization planningTechnical assessment, quote
File Preparation4-8 hoursOptimization, repair, print setupPrint-ready files
Production8-24 hours3D printing, quality controlRaw printed parts
Post-Processing2-8 hoursSupport removal, finishing, assemblyFinished model

Industry Applications and Benefits

Architectural Practice Integration

3D printed massing models serve multiple functions throughout the architectural design and development process:

Design Development

  • Early concept validation and testing
  • Rapid iteration and alternative exploration
  • Scale and proportion verification
  • Spatial relationship analysis
  • Site context integration assessment

Client Communication

  • Enhanced design presentation and explanation
  • Improved stakeholder engagement
  • Reduced miscommunication risks
  • Faster decision-making processes
  • Memorable presentation experiences

Urban Planning and Public Engagement

Massing models play crucial roles in urban planning processes, enabling effective communication with diverse stakeholder groups:

  • Public Consultations: Tangible models improve public understanding of development proposals
  • City Council Presentations: Physical models enhance formal presentation effectiveness
  • Community Workshops: Interactive models facilitate productive design discussions
  • Developer Marketing: Professional models support sales and marketing efforts
  • Regulatory Approval: Clear visualization assists in approval processes

Educational and Research Applications

Architectural education increasingly leverages 3D printed models for teaching design principles and research communication:

Academic Benefits

  • Design Studio Integration: Models support iterative design learning
  • Technical Skill Development: Students learn digital fabrication workflows
  • Research Communication: Physical models enhance research presentation
  • Cross-Disciplinary Collaboration: Models facilitate interdisciplinary understanding
  • Public Engagement Training: Students practice explaining designs using models

Post-Processing and Finishing Techniques

Surface Finishing Options

Professional presentation requires appropriate finishing techniques that enhance model appearance and durability:

  • Sanding and Smoothing: Remove layer lines and achieve smooth surfaces
  • Primer Application: Prepare surfaces for painting and improve finish quality
  • Painting Techniques: Apply appropriate paints for desired aesthetic effects
  • Clear Coating: Protect finishes and enhance durability
  • Texture Application: Add realistic surface textures representing building materials

Assembly and Integration

Complex models often require assembly techniques that maintain professional appearance while enabling practical handling:

  • Mechanical Fasteners: Threaded connections for removable assemblies
  • Adhesive Bonding: Permanent connections using appropriate adhesives
  • Magnetic Systems: Removable connections for modular designs
  • Integrated Mounting: Built-in attachment systems for display purposes
  • Electrical Integration: Wiring systems for lighting or interactive elements

Cost Considerations and Value Proposition

Economic Advantages

3D printing offers compelling economic advantages over traditional model making, particularly when considering total project value:

Direct Cost Benefits

  • Reduced labor costs for model production
  • Eliminated material waste
  • No tooling or setup costs
  • Scalable production costs
  • Predictable pricing structure

Indirect Value Creation

  • Accelerated design development
  • Improved client satisfaction
  • Enhanced project communication
  • Reduced revision cycles
  • Better design decision making

Investment Considerations

When evaluating 3D printing for architectural models, consider both immediate costs and long-term value creation:

  • Project Timeline Impact: Faster models enable earlier design validation
  • Iteration Enablement: Low-cost iterations improve final design quality
  • Client Engagement: Better presentations can influence project approval and scope
  • Competitive Advantage: Superior presentation capabilities differentiate practice
  • Workflow Efficiency: Integrated digital workflows reduce overall project time

Future Developments and Trends

Technological Advancement

Rapid advancement in 3D printing technology continues to expand possibilities for architectural model making:

  • Larger Build Volumes: Industrial-scale printers enable full building models
  • Multi-Material Printing: Simultaneous printing with different materials and colors
  • Improved Resolution: Higher precision enables finer architectural details
  • New Materials: Expanding material libraries with specialized properties
  • Integrated Electronics: Smart models with embedded sensors and displays
  • Sustainable Materials: Eco-friendly options for environmentally conscious practices

Industry Integration

The future of architectural model making involves deeper integration with digital design and fabrication workflows:

Emerging Trends

  • AI-Assisted Optimization: Automated file preparation and optimization
  • Real-Time Model Updates: Models that update automatically with design changes
  • Augmented Reality Integration: Physical models enhanced with digital information
  • Sustainable Workflows: Closed-loop material recycling systems
  • Distributed Manufacturing: Local production networks reducing shipping

Ready to transform your architectural presentations? Our team specializes in converting SketchUp, AutoCAD, and Revit files into professional massing models. Contact us at sales@forgelabs.com to discuss your project requirements and timeline.

Conclusion: The Future of Architectural Visualization

3D printing has fundamentally transformed architectural model making from a time-intensive craft to a rapid, precise, and accessible tool for design communication. This evolution empowers architects with unprecedented flexibility to experiment with complex forms, iterate designs rapidly, and engage stakeholders more effectively.

The integration of additive manufacturing into architectural workflows represents more than a technological upgrade—it enables new approaches to design development, client engagement, and public participation in the built environment planning process.

Key Advantages Summary

  • Rapid transition from digital design to physical model
  • Complex geometries and precise scale reproduction
  • Cost-effective iteration and design exploration
  • Enhanced client communication and engagement
  • Professional presentation quality and durability
  • Flexible material and color options
  • Integration with transparent and lighting systems
  • Scalable production from single models to series

As technology continues advancing and architectural practice evolves, 3D printed massing models will remain essential tools for bridging the gap between digital design imagination and physical reality, enabling architects to communicate their vision with unprecedented clarity and impact.

Further Resources

Related Topics

Architectural ModelsMassing Models3D PrintingFDMArchitectureDesign VisualizationRapid PrototypingBuilding ModelsUrban Planning
Back to Blog
Share this article:

Continue Reading

Explore more insights from our manufacturing experts
