The Complete Guide to Watertight 3D Printing: Technologies, Materials, and Post-Processing Techniques

Master the art of creating waterproof and watertight 3D printed parts with this comprehensive guide covering SLA, SLS, FDM technologies, material selection, design optimization, and professional post-processing techniques.

By Dylan Sawatzky

When engineering applications demand water resistance or complete watertightness, understanding the capabilities and limitations of different 3D printing technologies becomes critical. This comprehensive guide explores the fundamental differences between waterproof and watertight properties, examines how various printing methods achieve water resistance, and provides actionable strategies for creating reliable sealed components.

Key Takeaways

  • SLA technology produces watertight parts directly off the printer
  • SLS/MJF achieves good water resistance with proper design considerations
  • FDM requires specific materials and post-processing for watertight results
  • Design optimization significantly impacts water resistance across all technologies
  • Post-processing techniques can transform porous parts into watertight components

Understanding Waterproof vs. Watertight: Critical Distinctions

The distinction between waterproof and watertight properties represents a fundamental concept that impacts material selection, design decisions, and quality expectations. Waterproofness describes an inherent material property—the ability of a material itself to resist water permeation at the molecular level. Watertightness, conversely, refers to a structural characteristic where an assembled object prevents water passage through its construction, regardless of the underlying material properties.

This distinction becomes particularly important in additive manufacturing, where layer adhesion, printing parameters, and post-processing significantly influence the final part's water resistance capabilities. A theoretically waterproof material like ABS can produce non-watertight parts due to poor interlayer bonding, while a material with moderate intrinsic water resistance can achieve excellent watertightness through optimized printing parameters and design.

Engineering Insight

In industrial applications, watertightness often matters more than waterproofness. A well-designed gasket seal made from a moderately water-resistant material will outperform a poorly constructed barrier made from an inherently waterproof material.

Technology Comparison: Watertightness Capabilities

TechnologyWatertight Off Printer?Best MaterialsPost-Processing Options
SLA✓ YesAccura Xtreme White, Accura ClearVueOptional resin or silicone coating
SLS/MJF⚠ With design considerationsNylon PA 12Resin, silicone, or acrylic coating
FDM✗ Requires optimizationABS, ASACoatings, solvent smoothing

Stereolithography (SLA): The Gold Standard

SLA technology achieves superior watertightness through its fundamental printing mechanism. The photopolymerization process creates continuous, cross-linked polymer networks without the discrete layer boundaries that characterize other printing methods. This results in parts with homogeneous material properties and minimal internal porosity.

The liquid resin fully fills complex geometries before curing, eliminating air gaps that could compromise water resistance. Advanced materials like Accura Xtreme White and Accura ClearVue demonstrate excellent chemical resistance and mechanical properties while maintaining inherent watertightness. These materials undergo complete polymerization during printing, creating molecular structures that naturally resist water permeation.

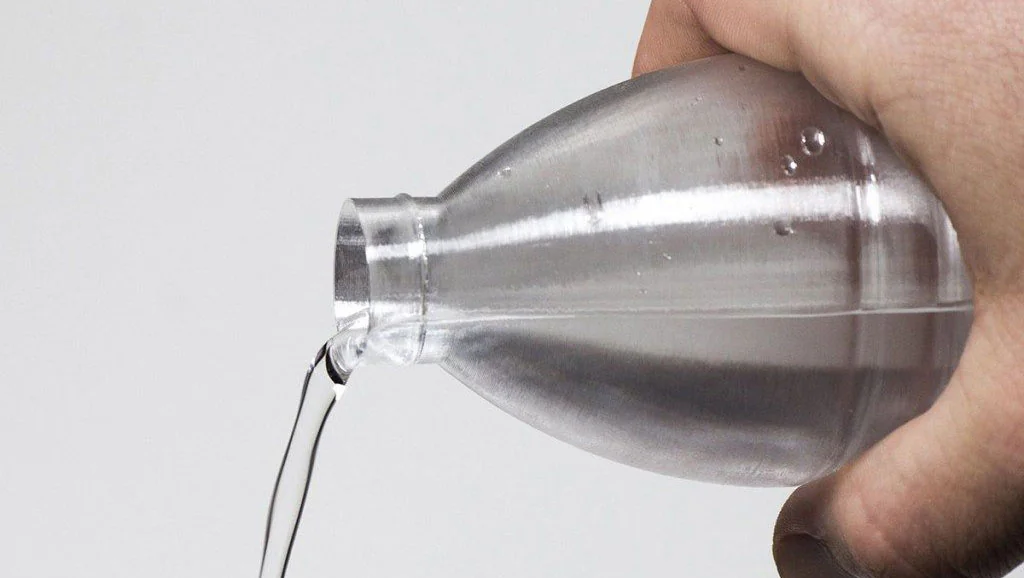

SLA 3D printed watertight container demonstrating superior seal integrity

Selective Laser Sintering (SLS) and Multi Jet Fusion (MJF)

SLS and MJF technologies achieve watertightness through particle fusion rather than layer adhesion. The laser sintering process melts polymer powder particles, creating dense, consolidated structures with minimal internal voids. However, achieving optimal watertightness requires careful attention to printing parameters and part orientation.

Nylon PA 12 represents the premier material choice for watertight SLS applications, offering excellent chemical resistance alongside robust mechanical properties. The material's crystalline structure and high processing temperatures result in strong inter-particle bonds that resist water infiltration. Additionally, PA 12 demonstrates resistance to various chemicals including alcohols, motor oils, and alkaline solutions.

Design Consideration

For SLS/MJF parts, optimal watertightness requires minimum wall thicknesses of 1.5-2.0mm and careful consideration of part orientation during printing to minimize the impact of powder fusion boundaries.

Fused Deposition Modeling (FDM): Challenges and Solutions

FDM presents unique challenges for watertight applications due to its layer-by-layer deposition mechanism. The thermal cycling inherent in FDM printing can create stress concentrations at layer boundaries, resulting in microscopic gaps that compromise water resistance. However, strategic material selection and parameter optimization can overcome these limitations.

ABS (Acrylonitrile Butadiene Styrene) and ASA (Acrylonitrile Styrene Acrylate) represent optimal material choices for watertight FDM applications. These materials exhibit lower hygroscopic properties compared to alternatives like PLA, reducing moisture absorption that could compromise dimensional stability. Additionally, both ABS and ASA support post-processing techniques like solvent smoothing that can eliminate layer lines and create truly watertight surfaces.

Design Optimization for Watertight Performance

Successful watertight design transcends material selection, requiring systematic consideration of geometry, stress distribution, and manufacturing constraints. The fundamental principle involves minimizing stress concentrations while maximizing structural integrity through thoughtful design choices.

Wall Thickness and Structural Reinforcement

Wall thickness directly impacts watertightness across all printing technologies. Insufficient thickness creates weak points susceptible to stress-induced failure, while excessive thickness wastes material and increases printing time. Optimal thickness varies by technology:

  • SLA: Minimum 1.0-1.5mm for reliable watertightness
  • SLS/MJF: Minimum 1.5-2.0mm for optimal particle fusion
  • FDM: Minimum 2.0-3.0mm with multiple perimeters for layer adhesion

Beyond minimum thicknesses, strategic reinforcement through ribs, gussets, and structural elements distributes loads and reduces stress concentrations. These features should integrate seamlessly with the overall design while providing additional material thickness in critical seal areas.

Geometry Optimization for Pressure Distribution

Sharp corners and abrupt transitions create stress concentrations that compromise watertightness under pressure. Smooth, rounded transitions distribute forces more evenly, reducing the likelihood of crack initiation and propagation. Consider these geometry optimization strategies:

Recommended Practices

  • • Large radius corners (minimum 2-3mm)
  • • Gradual thickness transitions
  • • Spherical or cylindrical geometries when possible
  • • Continuous, smooth surfaces
  • • Strategic placement of sealing surfaces

Avoid These Features

  • • Sharp internal corners
  • • Sudden thickness changes
  • • Complex internal geometries
  • • Rectangular shapes under pressure
  • • Thin-walled complex features

FDM-Specific Design Considerations

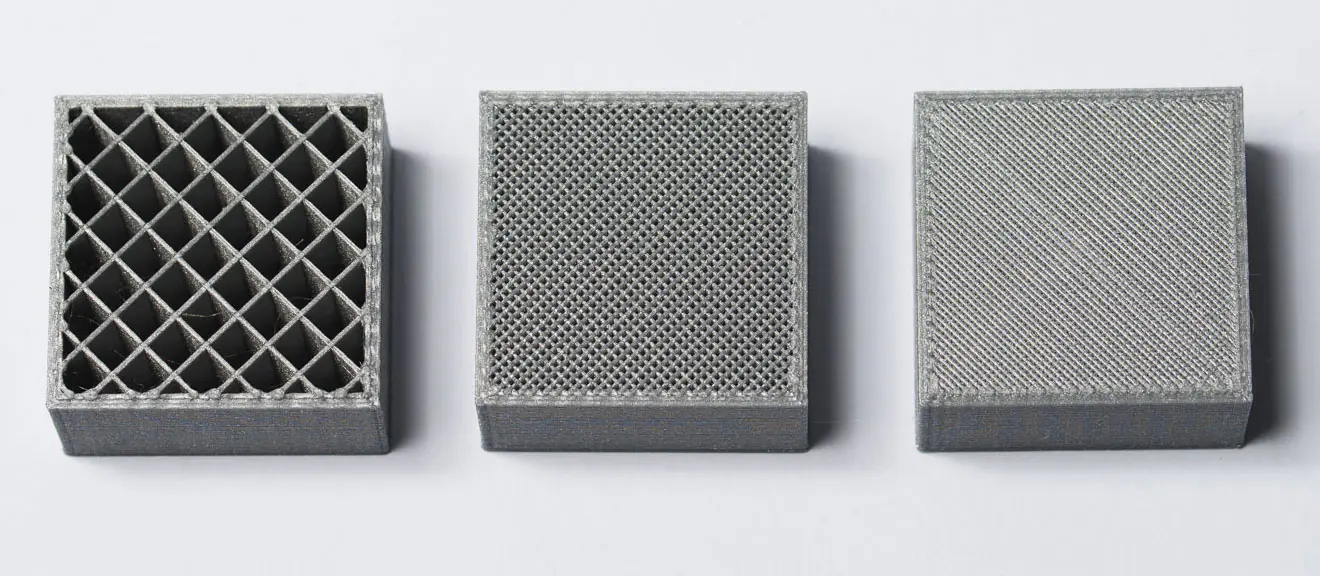

Comparison of different FDM infill densities showing impact on watertightness

FDM technology requires additional design considerations to achieve watertightness. The discrete layer nature demands specific strategies to minimize interlayer gaps and maximize adhesion:

Infill Density Optimization

Infill density dramatically affects watertightness in FDM parts. Standard sparse infill patterns (10-30%) create internal voids that can compromise water resistance, even with adequate shell thickness. For watertight applications, consider:

  • 100% Infill: Eliminates internal voids but increases material consumption and print time
  • 80-90% Infill: Balances material efficiency with structural integrity
  • Multiple Perimeters: 4-6 perimeter walls provide redundancy against layer separation
  • Thick Top/Bottom Layers: 6-8 solid layers ensure complete surface coverage

Layer Height and Printing Parameters

Layer height directly influences the number of layer interfaces and potential leak paths. Thicker layers (0.3-0.4mm) reduce the total number of interfaces but may compromise surface finish. Conversely, thinner layers (0.1-0.2mm) improve surface quality but increase the number of potential separation points.

Optimal parameters for watertight FDM printing include:

  • Layer Height: 0.2-0.3mm for optimal adhesion
  • Print Temperature: Upper range for improved layer fusion
  • Print Speed: Moderate speeds (30-50mm/s) for consistent extrusion
  • Heated Chamber: Reduces thermal stress and improves layer adhesion

Post-Processing Techniques for Enhanced Watertightness

Even optimally printed parts may benefit from post-processing to achieve superior watertightness or additional protection against specific environmental conditions. The selection of post-processing techniques depends on the printing technology, material selection, and performance requirements.

Protective Coatings and Sealants

Protective coatings provide an additional barrier layer that can transform marginally watertight parts into completely sealed components. Various coating options offer different benefits depending on application requirements:

Epoxy Resin Coatings

Epoxy coatings represent the most versatile solution for enhancing watertightness across all printing technologies. Products like XTC-3D are specifically formulated for 3D printed parts, offering excellent adhesion and gap-filling properties. These brush-on applications penetrate surface porosity while creating a continuous protective barrier.

Application requires careful surface preparation including degreasing and light sanding to ensure optimal adhesion. Multiple thin coats generally outperform single thick applications, providing better coverage and reducing the risk of runs or drips that could compromise surface finish.

Silicone and Acrylic Alternatives

Silicone coatings offer excellent flexibility and chemical resistance, making them ideal for parts subjected to thermal cycling or dynamic loads. Acrylic coatings provide good water resistance with superior optical clarity, beneficial for transparent or translucent components.

These alternative coatings typically require specialized application techniques, including spray application or dip coating for uniform coverage. The selection between coating types should consider:

  • Operating temperature range
  • Chemical exposure requirements
  • Mechanical property needs (flexibility vs. hardness)
  • Optical property requirements
  • Long-term environmental stability

Solvent Smoothing for FDM Parts

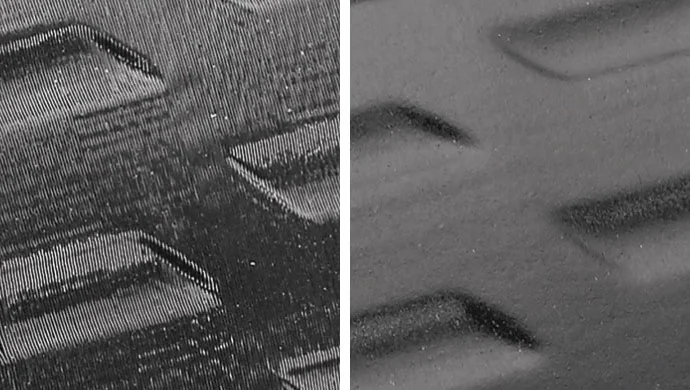

Before and after comparison of FDM parts showing vapor smoothing results

Solvent smoothing represents a powerful post-processing technique specifically applicable to ABS and ASA FDM parts. This process uses controlled solvent exposure to partially dissolve surface layers, allowing the material to flow and self-level, effectively eliminating layer lines and sealing microscopic gaps.

Acetone Vapor Smoothing Process

Acetone vapor smoothing involves exposing ABS parts to controlled acetone vapor in a sealed chamber. The process requires precise control of exposure time, temperature, and vapor concentration to achieve optimal results without compromising part dimensions or structural integrity.

The smoothing process follows these critical steps:

  1. Part Preparation: Clean parts thoroughly and mask areas requiring dimensional precision
  2. Chamber Setup: Create controlled vapor environment with appropriate ventilation
  3. Exposure Control: Monitor exposure time (typically 2-15 minutes depending on part size)
  4. Controlled Cooling: Allow gradual vapor dissipation to prevent thermal shock
  5. Final Inspection: Verify dimensional accuracy and surface quality

Safety Warning

Acetone vapor smoothing requires proper ventilation, personal protective equipment, and fire safety precautions. The process should only be performed in appropriate facilities with adequate safety controls.

Design Considerations for Solvent Smoothing

Solvent smoothing affects part dimensions, typically reducing external dimensions by 0.1-0.3mm depending on exposure intensity. This dimensional change necessitates design compensation, particularly for precision-fit applications or components with critical sealing surfaces.

Parts intended for solvent smoothing should incorporate these design features:

  • Minimum Wall Thickness: 2-3mm to accommodate material dissolution
  • Dimensional Compensation: Account for 0.1-0.3mm size reduction
  • Support-Free Surfaces: Minimize support marks that could create surface defects
  • Uniform Thickness: Avoid thin sections susceptible to excessive dissolution

Material Selection for Optimal Water Resistance

Material selection forms the foundation of successful watertight design, influencing not only inherent water resistance but also compatibility with post-processing techniques and long-term environmental stability. Each printing technology offers specific materials optimized for water-resistant applications.

SLA Materials: Precision and Performance

SLA technology provides access to advanced photopolymer formulations specifically engineered for demanding applications. These materials undergo complete photopolymerization during printing, creating homogeneous structures with excellent water resistance properties.

Accura Xtreme White

This high-performance material offers exceptional mechanical properties combined with superior water resistance. The material demonstrates excellent dimensional stability under various environmental conditions, making it suitable for precision applications requiring long-term water exposure. Key properties include:

  • Tensile Strength: 65-75 MPa
  • Chemical Resistance: Excellent against common solvents and cleaners
  • Temperature Stability: Maintains properties from -40°C to +80°C
  • UV Resistance: Formulated for outdoor applications

Accura ClearVue

Designed for applications requiring optical clarity combined with water resistance, ClearVue offers unique capabilities for transparent components. The material maintains clarity while providing robust mechanical properties and environmental resistance suitable for demanding applications.

SLS/MJF Materials: Industrial Strength

Powder bed fusion technologies utilize engineering thermoplastics that provide excellent mechanical properties and chemical resistance. The high processing temperatures create strong inter-particle bonds that contribute to superior watertightness.

Nylon PA 12

PA 12 represents the gold standard for watertight SLS applications, offering an exceptional combination of mechanical strength, chemical resistance, and processing characteristics. The material's semi-crystalline structure provides excellent barrier properties against water and various chemicals.

Chemical resistance testing demonstrates PA 12's compatibility with:

  • Alcohols: Methanol, ethanol, isopropanol
  • Automotive Fluids: Motor oils, transmission fluids, coolants
  • Alkaline Solutions: Sodium hydroxide, potassium hydroxide (low concentrations)
  • Weak Acids: Acetic acid, citric acid solutions

Industry Application

Automotive manufacturers regularly specify PA 12 for under-hood components exposed to oils, coolants, and temperature cycling, demonstrating its real-world reliability in demanding water-resistant applications.

FDM Materials: Optimization Strategies

FDM material selection focuses on thermoplastics that combine good layer adhesion properties with inherent water resistance and post-processing compatibility. The hygroscopic nature of many thermoplastics necessitates careful consideration of moisture absorption effects.

ABS: The Versatile Standard

ABS provides an excellent balance of printability, mechanical properties, and post-processing compatibility for watertight applications. The material's relatively low hygroscopic properties minimize dimensional changes due to moisture absorption, while its compatibility with acetone enables effective solvent smoothing.

For optimal watertight performance, ABS printing requires:

  • Proper Storage: Sealed containers with desiccant to prevent moisture absorption
  • Print Temperature: 230-250°C for optimal layer fusion
  • Heated Bed: 80-100°C to minimize warping and improve adhesion
  • Enclosure: Controlled environment reduces thermal stress

ASA: Weather-Resistant Alternative

ASA (Acrylonitrile Styrene Acrylate) offers similar properties to ABS with enhanced UV resistance and weather stability. This makes ASA particularly suitable for outdoor applications or components exposed to UV radiation. The material processes similarly to ABS while providing superior long-term environmental stability.

Quality Validation and Testing Protocols

Validating watertightness requires systematic testing protocols that simulate real-world operating conditions. Different applications demand different validation approaches, from simple immersion tests to sophisticated pressure cycling evaluations.

Basic Watertightness Testing

Initial validation typically begins with simple leak detection methods that identify gross failures before proceeding to more sophisticated testing. These methods provide quick feedback during design iteration phases:

Immersion Testing

Static immersion testing involves submerging sealed test articles in water for specified durations while monitoring for leak evidence. Test parameters should reflect intended operating conditions including temperature, pH, and chemical composition.

Pressure Testing

Pneumatic or hydrostatic pressure testing evaluates watertightness under realistic operating pressures. Testing should include safety factors appropriate to the application, typically 1.5-2.0 times the maximum operating pressure.

Advanced Validation Methods

Critical applications may require sophisticated testing protocols that evaluate long-term reliability and performance under various environmental conditions:

  • Thermal Cycling: Evaluates seal integrity under temperature variations
  • Pressure Cycling: Simulates repeated pressurization/depressurization
  • Chemical Compatibility: Tests resistance to specific operating fluids
  • Accelerated Aging: Predicts long-term performance under environmental stress

Industry Applications and Case Studies

Real-world applications demonstrate the practical implementation of watertight 3D printing principles across diverse industries. These examples illustrate how technology selection, design optimization, and post-processing combine to meet specific performance requirements.

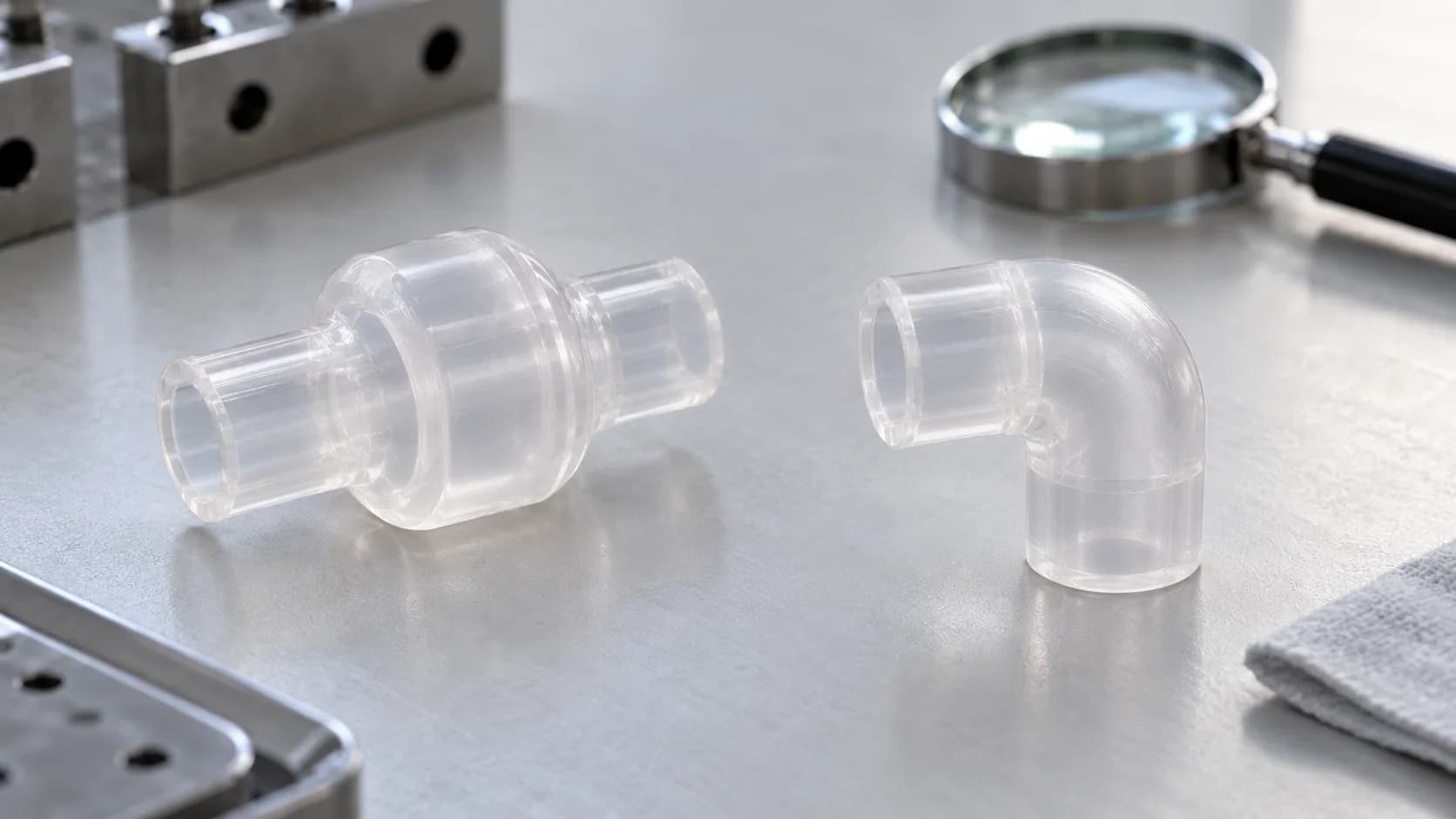

Medical Device Components

Medical device applications often require watertight components for fluid handling, sterilization compatibility, and patient safety. SLA technology using biocompatible resins provides the precision and surface quality necessary for critical medical applications while ensuring reliable watertightness.

Aerospace Fluid Systems

Aerospace applications demand components that maintain watertightness under extreme environmental conditions including temperature cycling, vibration, and chemical exposure. SLS Nylon PA 12 components demonstrate exceptional performance in fuel system applications, hydraulic components, and environmental control systems.

Automotive Under-Hood Components

Automotive applications require watertight components that resist various fluids while maintaining performance under thermal cycling. Both SLS and properly post-processed FDM parts serve critical roles in cooling system components, fluid reservoirs, and protective housings.

Troubleshooting Common Watertightness Issues

Understanding common failure modes enables proactive design improvements and troubleshooting strategies when watertightness requirements are not met. Most failures fall into predictable categories with established solution approaches.

Layer Adhesion Failures (FDM)

Poor layer adhesion represents the most common cause of watertightness failure in FDM parts. Symptoms include visible delamination, crackling sounds under pressure, and leak paths along layer boundaries. Solutions include:

  • Temperature Optimization: Increase print temperature within material guidelines
  • Speed Reduction: Slower printing allows better heat transfer between layers
  • Layer Height Adjustment: Optimize for specific material characteristics
  • Environment Control: Eliminate drafts and temperature variations

Surface Porosity Issues

Surface porosity can affect all printing technologies but presents differently depending on the root cause. SLA parts may exhibit porosity due to incomplete curing, while SLS parts may show porosity from inadequate powder fusion.

Post-Processing Defects

Coating failures, uneven solvent smoothing, or inadequate surface preparation can compromise watertightness even in well-printed parts. Prevention requires systematic post-processing protocols with appropriate quality control checkpoints.

Future Developments in Watertight 3D Printing

Emerging technologies and materials continue to expand the capabilities of watertight 3D printing. Multi-material printing enables integrated sealing features, while advanced post-processing techniques provide new options for enhancing water resistance.

Research into hybrid manufacturing approaches combines additive manufacturing with traditional sealing technologies, creating new possibilities for complex watertight assemblies. These developments promise to expand the application range of 3D printed watertight components into increasingly demanding environments.

Conclusion: Mastering Watertight 3D Printing

Achieving reliable watertightness in 3D printed components requires systematic consideration of technology selection, material properties, design optimization, and post-processing techniques. While SLA technology provides the most straightforward path to watertightness, careful optimization enables success across all major printing technologies.

The key to success lies in understanding the fundamental principles governing water resistance in each technology and applying appropriate design and processing strategies. Whether developing medical devices, aerospace components, or consumer products, these principles provide the foundation for creating reliable, watertight 3D printed parts.

As additive manufacturing continues to evolve, watertight capabilities will expand, opening new applications and enabling innovative designs that leverage the unique capabilities of 3D printing technology. By mastering current techniques and staying informed about emerging developments, engineers can confidently specify 3D printing for even the most demanding watertight applications.
