The Critical Role of Part Orientation in Additive Manufacturing

When engineers receive a CAD file for 3D printing, the first critical decision involves determining optimal part orientation. This seemingly simple choice cascades through every aspect of the manufacturing process, affecting mechanical properties, surface quality, material consumption, and ultimately, the success of the finished part.

Unlike traditional manufacturing methods where orientation affects primarily machining access and fixturing, additive manufacturing orientation directly influences the fundamental material structure of the finished part. The layer-by-layer construction process creates inherent anisotropy, making orientation a primary design consideration rather than a secondary manufacturing constraint.

Universal Orientation Principles

Despite significant differences between 3D printing technologies, all additive manufacturing processes share fundamental characteristics that make orientation critical:

  • Layer-based construction: Parts are built through discrete layer deposition
  • Support requirements: Overhanging features require temporary support structures
  • Post-processing needs: Support removal and surface finishing are required
  • Anisotropic properties: Different strengths in different directions
  • Surface quality variation: Different finish quality on different faces

These shared characteristics create a complex optimization problem where engineers must balance competing priorities to achieve optimal results for specific applications and requirements.

Part Strength: The Primary Consideration

For functional parts and critical prototypes, mechanical strength takes precedence in orientation decisions. The layer-by-layer construction process creates distinct strength characteristics that vary dramatically based on build orientation relative to applied loads.

Understanding Anisotropic Behavior

Additive manufacturing inherently creates anisotropic material properties, where strength varies significantly depending on the direction of applied loads relative to layer boundaries. This behavior is most pronounced in FDM technology but affects all layer-based processes to varying degrees.

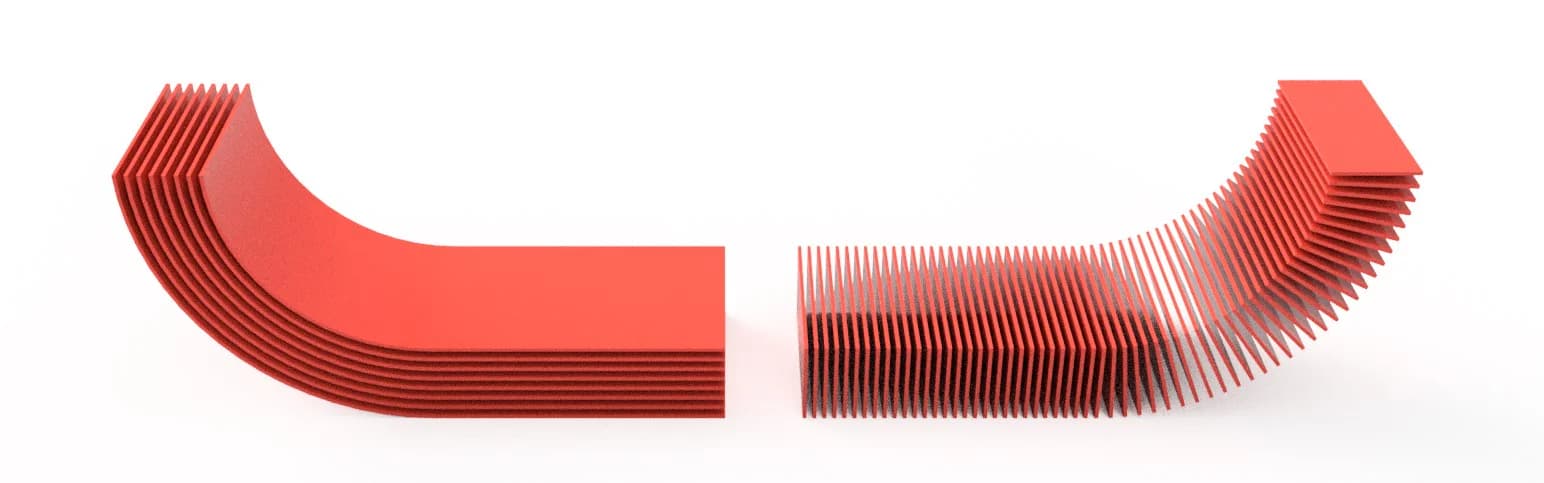

Illustration showing how bending forces interact with layer boundaries in 3D printed parts

The analogy to wood grain provides an intuitive understanding: just as wood splits more easily along its grain than across it, 3D printed parts are weaker when forces attempt to separate layers rather than stress individual layers. This fundamental principle drives most strength-based orientation decisions.

Technology-Specific Strength Considerations

Different 3D printing technologies exhibit varying degrees of anisotropic behavior, requiring tailored approaches to strength optimization:

TechnologyAnisotropy LevelCritical FactorsOrientation Priority
FDMVery HighLayer adhesion, infill pattern, load directionCritical - Primary design driver
SLSModerateParticle fusion, thin featuresImportant for complex geometries
SLALowCure quality, support attachmentSecondary to surface quality
DMLSModerateThermal stress, residual stressCritical for stress concentration

FDM Orientation for Maximum Strength

FDM technology exhibits the most pronounced anisotropic behavior, making orientation critical for strength optimization. The fundamental principle involves aligning the strongest direction (along layers) with the primary load paths in the application.

Key FDM strength optimization strategies:

  • Load path analysis: Identify primary stress directions in service conditions
  • Layer alignment: Orient layers perpendicular to maximum tensile stress
  • Flexural loading: Position neutral axis parallel to layer boundaries
  • Impact resistance: Maximize layer count in impact direction
  • Fatigue considerations: Minimize layer separation under cyclic loading

Snap-Fit Example

For snap-fit features designed to bend during use, orient so bending forces are distributed across multiple layers rather than concentrated at layer interfaces. This approach can increase failure load by 300-500% compared to poor orientation choices.

Powder Bed Fusion Strength Optimization

SLS and other powder bed fusion technologies exhibit more isotropic properties than FDM, but orientation still affects strength, particularly for thin features and complex geometries.

SLS orientation considerations:

  • Thin wall optimization: Minimize unsupported spans in weak directions
  • Feature resolution: Orient fine details for optimal powder fusion
  • Stress concentration: Position notches and sharp corners optimally
  • Living hinges: Align flex points with stronger material directions

Photopolymer Resin Strength Factors

SLA and PolyJet technologies generally provide more uniform strength properties, but orientation still influences performance, particularly regarding support attachment points and cure quality.

Photopolymer orientation strategies:

  • Support minimization: Reduce attachment points in critical stress areas
  • Cure optimization: Ensure proper light penetration for complete polymerization
  • Feature orientation: Position small features for optimal resolution
  • Stress concentration: Avoid supports at notches and stress risers

Material Usage and Cost Optimization

After strength considerations, material efficiency becomes the primary driver for orientation decisions. Optimizing material usage directly impacts both part cost and manufacturing lead times, making it a critical factor for production applications.

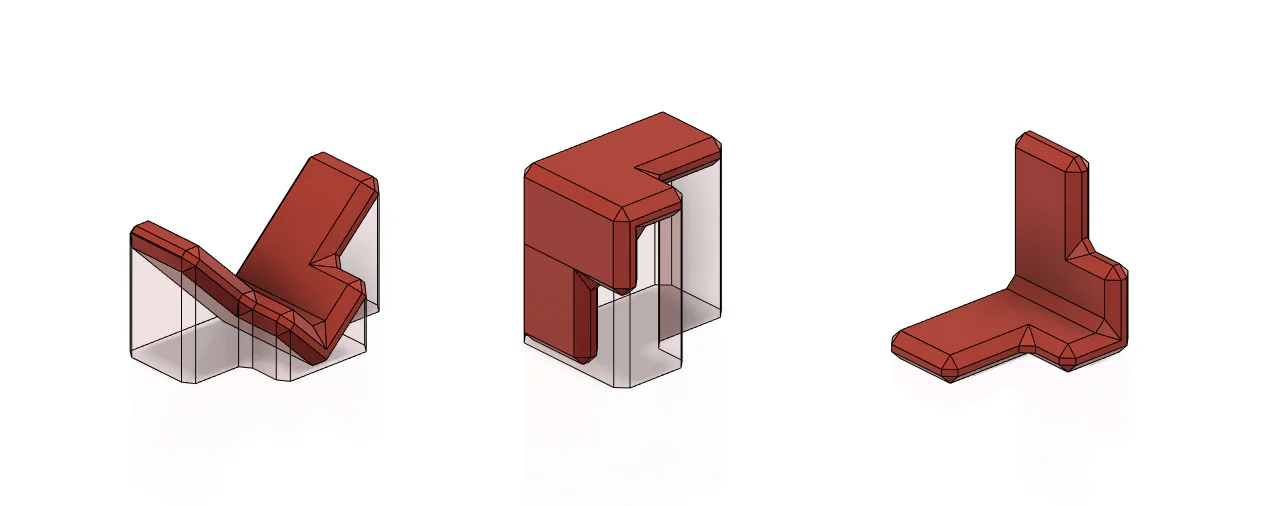

Comparison of different part orientations showing material usage and support requirements

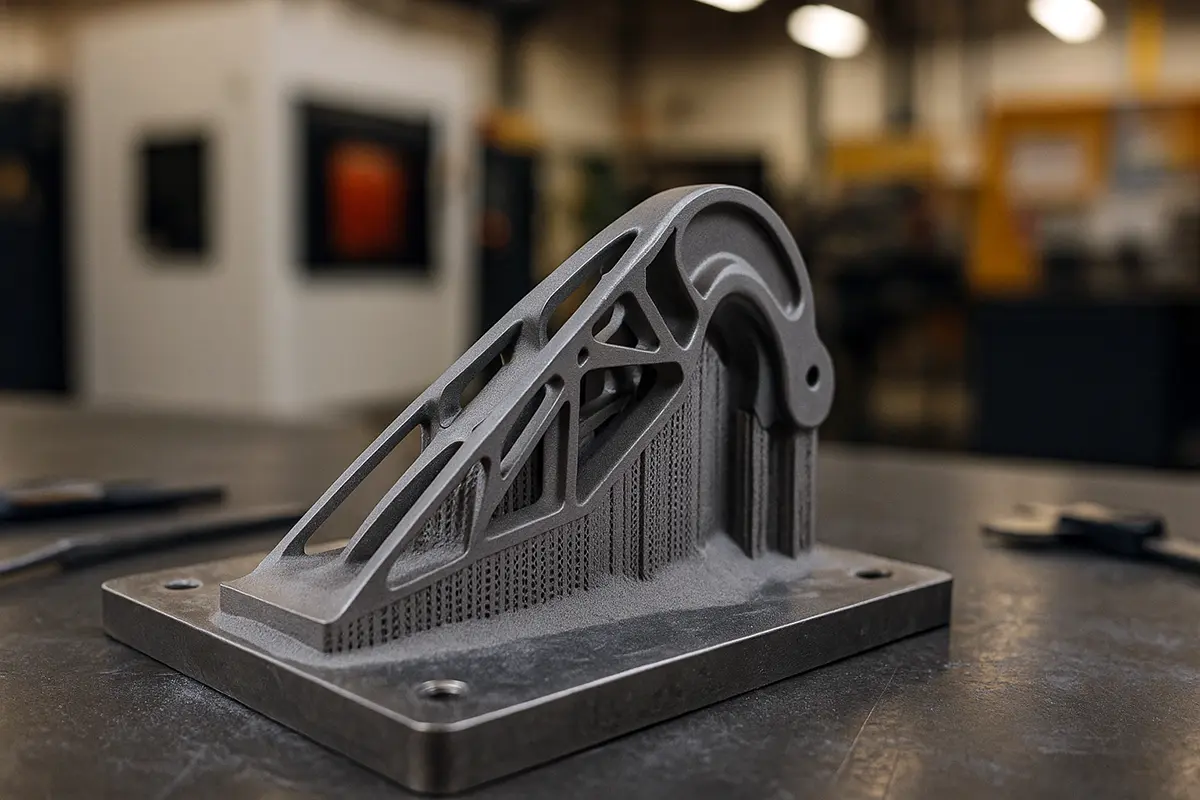

Support Material Minimization

Support structures represent pure waste in additive manufacturing - material consumed without contributing to the final part function. Effective orientation strategies can dramatically reduce support requirements while maintaining part integrity and surface quality.

Universal support reduction principles:

  • Overhang analysis: Identify and minimize unsupported surfaces
  • Bridge optimization: Orient spans to minimize sagging
  • Hole orientation: Position holes to avoid support in bores
  • Feature stacking: Stack features vertically to share supports
  • Self-supporting design: Utilize geometry for natural support

Technology-Specific Material Optimization

Different technologies have varying support requirements and material efficiency considerations:

FDM Material Optimization

  • • Minimize soluble support usage through orientation
  • • Reduce Z-height to decrease print time
  • • Optimize infill efficiency through load-aligned orientation
  • • Consider support interface layers in orientation decisions

SLS Material Optimization

  • • Maximize build density for powder efficiency
  • • Optimize nesting for multiple parts
  • • Consider powder aging and reuse implications
  • • Balance orientation with powder flow requirements

SLA Material Optimization

  • • Minimize resin volume through hollow designs
  • • Optimize support tree efficiency
  • • Consider resin curing requirements
  • • Balance detail resolution with support needs

Build Volume Optimization

Effective orientation maximizes the number of parts that can be produced in a single build, improving manufacturing efficiency and reducing per-part costs. This consideration becomes particularly important for production applications requiring multiple identical parts.

Build efficiency strategies:

  • Nesting optimization: Arrange multiple parts for maximum density
  • Z-height minimization: Reduce total build time through orientation
  • Support sharing: Design orientations to share support structures
  • Material gradation: Use orientation to optimize material properties

Surface Finish and Quality Considerations

Surface quality in additive manufacturing is directly tied to part orientation, with layer stepping, support marks, and surface roughness all varying based on build angle and orientation choices. Understanding these relationships enables optimization for applications requiring specific surface characteristics.

Layer Stepping and Staircase Effects

The characteristic "staircase" appearance on 3D printed surfaces results from the intersection of layer boundaries with part geometry. This effect is most pronounced on surfaces at shallow angles to the build platform, where layer transitions become visible steps.

Surface angle optimization principles:

  • Vertical surfaces: Minimal stepping, excellent finish quality
  • Horizontal surfaces: Best resolution, no layer lines
  • Shallow angles (0-30°): Maximum stepping, poor finish
  • Steep angles (60-90°): Minimal stepping, good finish

Critical Surface Identification

Identify "A-surfaces" - cosmetically critical faces that require the highest quality finish. Orient these surfaces vertically or near-vertical to minimize layer stepping effects, even if this compromises other factors.

Support Mark Minimization

Support structures leave marks on contact surfaces that often require post-processing to remove. Strategic orientation can position these marks on non-critical surfaces or in areas that are easily accessible for finishing.

Support mark management strategies:

  • Non-critical placement: Position supports on hidden or functional surfaces
  • Access optimization: Ensure support removal tooling can reach all marks
  • Mark size control: Use orientation to minimize support contact area
  • Finish planning: Consider post-processing accessibility in orientation

Technology-Specific Surface Quality

Different 3D printing technologies have varying surface quality capabilities and sensitivities to orientation:

TechnologyOrientation SensitivityCritical AnglesPost-Processing
FDMVery HighAvoid 0-45° anglesExtensive finishing needed
SLSModerateSelf-supporting >40°Minimal finishing
SLALowExcellent at all anglesSupport mark removal
DMLSModerateDownskin >45°Machining often required

Advanced Orientation Strategies

Beyond basic orientation principles, advanced strategies consider the complex interactions between geometry, material properties, and application requirements to achieve optimal results for challenging parts and applications.

Multi-Objective Optimization

Real-world orientation decisions rarely optimize for a single factor. Instead, engineers must balance competing requirements using systematic approaches that consider all relevant factors simultaneously.

Optimization framework:

  1. Requirement analysis: Define critical performance criteria and constraints
  2. Factor weighting: Assign relative importance to strength, cost, and quality
  3. Orientation comparison: Evaluate multiple orientations against criteria
  4. Trade-off analysis: Identify acceptable compromises for optimization
  5. Validation testing: Confirm orientation performance through prototyping

Decision Matrix Example

Create a weighted decision matrix scoring each potential orientation against critical factors (strength, cost, finish, time). This quantitative approach removes bias and ensures consistent decision-making across projects.

Complex Geometry Strategies

Parts with complex geometries, multiple critical surfaces, or conflicting requirements need sophisticated orientation strategies that may involve design modifications or multi-stage manufacturing approaches.

Complex geometry approaches:

  • Feature prioritization: Optimize for the most critical features first
  • Split manufacturing: Consider printing parts separately for assembly
  • Hybrid orientation: Use angled orientations for compromise solutions
  • Design modification: Adjust geometry to improve manufacturability
  • Post-processing planning: Design orientation around finishing capabilities

Production Volume Considerations

Orientation strategies often differ between prototyping and production applications. Production volumes justify additional tooling, fixturing, and process optimization that may not be economical for single parts.

Production optimization factors:

  • Throughput maximization: Optimize build density for volume production
  • Quality consistency: Ensure repeatable results across builds
  • Automation compatibility: Consider robotic handling and processing
  • Tool wear: Minimize post-processing tool wear and replacement

Industry-Specific Orientation Requirements

Different industries impose specific requirements that influence orientation decisions, from regulatory compliance to performance standards that override general optimization principles.

Aerospace Applications

Aerospace applications prioritize strength and fatigue performance over cost considerations, often requiring extensive testing to validate orientation choices and process parameters.

Aerospace orientation priorities:

  • Load path optimization: Align strongest directions with primary loads
  • Fatigue resistance: Minimize stress concentrations at layer interfaces
  • Inspection access: Enable NDT testing of critical areas
  • Traceability: Document orientation decisions for certification

Medical Device Requirements

Medical device applications often prioritize surface quality and biocompatibility, requiring orientation strategies that minimize post-processing while maintaining performance.

Medical device considerations:

  • Surface smoothness: Minimize bacterial adhesion through orientation
  • Sterilization compatibility: Ensure orientation allows effective sterilization
  • Biocompatibility: Avoid orientations requiring extensive post-processing
  • Patient safety: Eliminate sharp edges from support removal

Automotive Performance Parts

Automotive applications balance performance requirements with cost constraints, often requiring orientation optimization for specific loading conditions.

Automotive orientation factors:

  • Impact resistance: Optimize for crash and impact loading
  • Temperature cycling: Consider thermal expansion effects
  • Assembly requirements: Ensure orientation supports assembly processes
  • Cost targets: Balance performance with manufacturing economics

Computational Tools and Software Solutions

Modern orientation optimization increasingly relies on computational tools that can analyze complex geometries and automatically suggest optimal orientations based on defined criteria and constraints.

Automated Orientation Software

Advanced software tools can automatically analyze part geometry and suggest optimal orientations based on predefined criteria, reducing manual analysis time and improving consistency across projects.

Software capabilities:

  • Support volume calculation: Automatically calculate support requirements
  • Surface quality prediction: Estimate finish quality for different orientations
  • Strength analysis: Predict mechanical performance based on orientation
  • Multi-objective optimization: Balance multiple competing factors
  • Build time estimation: Calculate manufacturing time for each orientation

Simulation and Validation

Finite element analysis and other simulation tools can validate orientation decisions before manufacturing, reducing the need for costly iteration and testing cycles.

Simulation applications:

  • Stress analysis: Verify strength predictions for different orientations
  • Thermal simulation: Predict warpage and distortion effects
  • Support optimization: Minimize support volume while maintaining stability
  • Print simulation: Predict layer-by-layer construction effects

Quality Control and Validation Methods

Effective orientation strategies require validation through systematic testing and quality control procedures that confirm predicted performance and identify opportunities for improvement.

Test Specimen Orientation

Standardized test specimens must be oriented consistently to generate reliable material property data that accurately represents production part performance.

Testing considerations:

  • Standard orientation: Follow ASTM standards for material testing
  • Application-specific testing: Test in actual part orientations
  • Statistical validation: Test multiple orientations for comparison
  • Long-term testing: Validate performance over extended periods

Production Quality Monitoring

Production parts require ongoing monitoring to ensure orientation decisions continue delivering expected performance and quality results.

Monitoring strategies:

  • Dimensional verification: Confirm orientation maintains accuracy
  • Surface quality tracking: Monitor finish consistency across builds
  • Strength testing: Periodic validation of mechanical properties
  • Customer feedback: Track field performance and failure modes

Future Trends in Orientation Optimization

Emerging technologies and techniques are expanding the possibilities for orientation optimization, from advanced materials to new manufacturing approaches that may reduce orientation sensitivity.

Multi-Material and Gradient Manufacturing

Advanced 3D printing systems capable of printing multiple materials or creating material gradients offer new possibilities for orientation-independent design, where different regions of a part can be optimized for different requirements.

AI-Driven Optimization

Machine learning algorithms are increasingly being applied to orientation optimization, learning from vast databases of past projects to predict optimal orientations for new parts automatically.

Isotropic Material Development

Research into new materials and processing techniques aims to reduce or eliminate the anisotropic properties that make orientation critical, potentially simplifying orientation decisions in the future.

Practical Implementation Guidelines

Successful implementation of orientation optimization requires systematic procedures that integrate engineering analysis with manufacturing experience and customer requirements.

Orientation Decision Framework

  1. Requirements analysis: Define critical performance criteria
  2. Load path identification: Understand application stress patterns
  3. Constraint evaluation: Identify geometry and manufacturing limits
  4. Multi-orientation comparison: Evaluate multiple possibilities
  5. Trade-off optimization: Balance competing requirements
  6. Validation planning: Design testing to confirm decisions
  7. Documentation: Record rationale for future reference

Common Orientation Mistakes

Understanding common orientation mistakes helps engineers avoid pitfalls that can compromise part performance or increase manufacturing costs.

Typical orientation errors:

  • Strength assumptions: Assuming isotropic behavior for anisotropic materials
  • Support underestimation: Underestimating support volume and removal time
  • Surface prioritization: Over-prioritizing cosmetic surfaces
  • Single-factor optimization: Optimizing for only one factor
  • Validation skipping: Not testing orientation assumptions

Conclusion: Mastering the Art and Science of Orientation

Part orientation represents the intersection of engineering science and manufacturing art, where technical analysis meets practical experience to achieve optimal results. Success requires understanding the fundamental principles while developing intuition for the complex trade-offs inherent in real-world applications.

The most effective orientation strategies balance multiple competing requirements through systematic analysis and validation. As 3D printing technologies continue advancing, the principles outlined in this guide will remain relevant while new capabilities expand the possibilities for optimization.

Investment in understanding orientation principles pays dividends across all applications, from initial prototyping through high-volume production. The time spent optimizing orientation at the design stage prevents costly iterations and ensures parts meet performance requirements from the first build.

The future of orientation optimization lies in combining computational tools with engineering expertise, creating systematic approaches that leverage both analytical capabilities and manufacturing experience to achieve consistently excellent results.

Expert Orientation Consultation

Our experienced production engineering team specializes in orientation optimization across all major 3D printing technologies. We provide comprehensive analysis and recommendations to ensure your parts achieve optimal strength, quality, and cost efficiency.

Contact our engineering team for personalized orientation consultation, or explore our design guidelines for technology-specific orientation recommendations.

Related Topics

part orientation3d printing optimizationmanufacturing costsurface finishprint strengthdesign for manufacturingfdmslsslasupport structures
Back to Blog
Share this article:

Continue Reading

Explore more insights from our manufacturing experts
