Metal 3D printing technology is revolutionizing manufacturing across industries by enabling unprecedented design flexibility and the fabrication of high-strength, durable components with complex geometries. The selection of appropriate materials is critical to fully harness the capabilities of Direct Metal Laser Sintering (DMLS) technology.
This comprehensive guide examines the primary metal alloys available for DMLS manufacturing, analyzing their distinct characteristics, mechanical properties, and optimal applications across aerospace, medical, automotive, and other industrial sectors.
Material Selection Overview
Key Selection Factors
Mechanical Properties
- • Tensile strength and yield strength requirements
- • Fatigue resistance and cyclic loading performance
- • Hardness specifications (HRC, HV)
- • Elongation and ductility characteristics
Environmental Conditions
- • Corrosion resistance requirements
- • Operating temperature ranges
- • Chemical compatibility
- • Biocompatibility standards (ISO 10993)

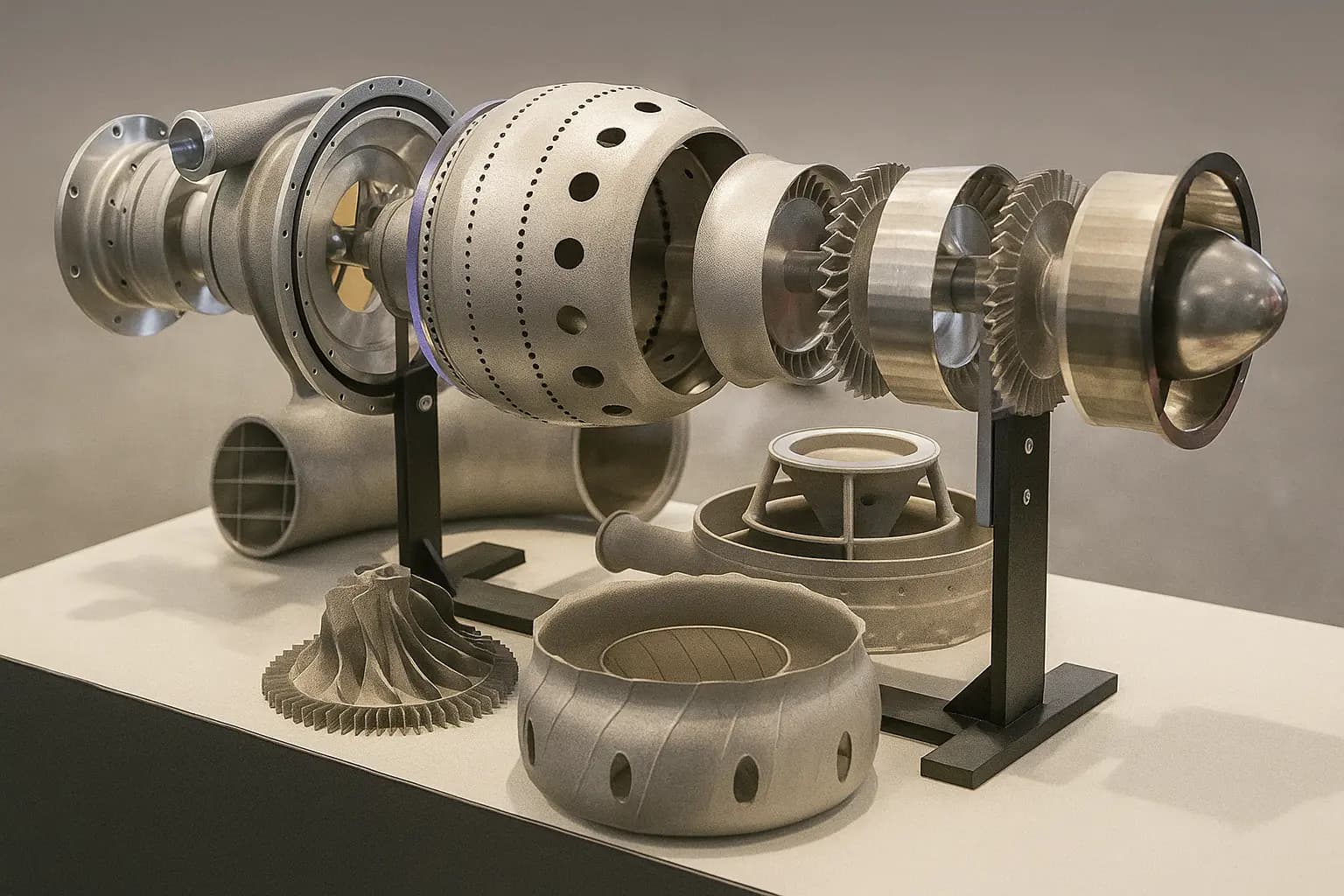

Stainless Steel 316L
Stainless Steel 316L is an austenitic stainless steel alloy distinguished by its high chromium (16-18%) and nickel (10-14%) content. The "L" designation indicates low carbon content (<0.03%), which enhances weldability and minimizes carbide precipitation, reducing susceptibility to intergranular corrosion.
Key Properties
- • Tensile Strength: 485-620 MPa
- • Yield Strength: 170-310 MPa
- • Elongation: 40-50%
- • Hardness: 70-90 HRB
- • Density: 8.0 g/cm³
Industrial Applications
Aerospace
- Engine Components: Turbine housings, exhaust manifolds
- Structural Elements: Mounting brackets, support structures
- Fluid Systems: Hydraulic fittings, fuel line components
Medical Devices
- Surgical Instruments: Forceps, scissors, clamps
- Implants: Orthopedic plates, dental implants
- Diagnostic Equipment: MRI-compatible components
Automotive
- Exhaust Systems: Manifolds, catalytic converter housings
- Performance Parts: Turbocharger components, heat exchangers
- Custom Components: Racing applications, prototypes
Stainless Steel 17-4 PH
This precipitation-hardening stainless steel combines exceptional strength and hardness with good corrosion resistance. The alloy contains chromium (15-17.5%), nickel (3-5%), and copper (3-5%), enabling heat treatment processes that significantly enhance mechanical properties through martensitic transformation and copper precipitation.
Heat Treatment Capability
17-4 PH can achieve ultimate tensile strengths up to 1380 MPa through solution annealing and aging treatments, making it ideal for high-stress applications.
Mechanical Properties (Heat Treated)
H900 Condition
- • Tensile Strength: 1310-1380 MPa
- • Yield Strength: 1170-1240 MPa
- • Elongation: 10-14%
- • Hardness: 40-44 HRC
H1025 Condition
- • Tensile Strength: 1000-1070 MPa
- • Yield Strength: 930-1000 MPa
- • Elongation: 12-16%
- • Hardness: 32-38 HRC
Maraging Steel
Maraging steels represent a class of ultra-high-strength steel alloys known for exceptional strength and toughness achieved through a unique combination of low-carbon martensitic structure and precipitation hardening. These alloys contain nickel (18-25%), cobalt (7-12%), molybdenum (3-5%), and titanium (0.1-1.8%), enabling remarkable strength-to-weight ratios through controlled aging processes.
Maraging Steel 300 Properties
As-Built Condition
- • Tensile Strength: 1000-1200 MPa
- • Yield Strength: 800-1000 MPa
- • Elongation: 8-15%
- • Hardness: 30-35 HRC
Age-Hardened (480°C/3hr)
- • Tensile Strength: 1900-2100 MPa
- • Yield Strength: 1850-2000 MPa
- • Elongation: 5-8%
- • Hardness: 50-56 HRC
Aerospace Applications
- Landing Gear: High-strength brackets, actuators
- Engine Mounts: Critical load-bearing structures
- Tooling: Precision jigs, fixtures, test equipment
Manufacturing & Tooling
- Injection Molding: High-precision dies, inserts
- Cutting Tools: Complex geometries, custom profiles
- Stamping Dies: High-volume production tooling
Energy & Oil/Gas
- Downhole Tools: Drilling components, wellhead equipment
- Turbine Components: High-temperature, high-stress parts
- Pressure Vessels: Critical containment applications
Aluminum AlSi10Mg
This aluminum-silicon-magnesium alloy combines lightweight properties with excellent strength-to-weight ratio, making it ideal for applications requiring mass reduction. AlSi10Mg contains 9-11% silicon and 0.2-0.45% magnesium, providing good thermal properties, castability, and resistance to hot cracking during the rapid cooling inherent in DMLS processing.
Thermal Properties
Thermal conductivity of 160-180 W/mK makes AlSi10Mg excellent for heat dissipation applications and thermal management systems.
Mechanical Properties
As-Built
- • Tensile Strength: 270-350 MPa
- • Yield Strength: 160-200 MPa
- • Elongation: 3-7%
- • Density: 2.67 g/cm³
Heat Treated (T6)
- • Tensile Strength: 290-380 MPa
- • Yield Strength: 200-250 MPa
- • Elongation: 5-12%
- • Hardness: 100-120 HB
Titanium Ti64 (Ti-6Al-4V)
This alpha-beta titanium alloy represents the most widely used titanium alloy globally, containing 6% aluminum and 4% vanadium. Ti64 offers an exceptional combination of high strength, low density (4.43 g/cm³), and superior corrosion resistance. Its microstructure consists of both alpha and beta phases, providing optimal balance of strength, ductility, and processability.
Aerospace & High-Performance Applications
Ti64 is the workhorse of the aerospace industry, offering exceptional strength-to-weight ratio and corrosion resistance. Its high temperature performance and fatigue resistance make it ideal for critical structural components and engine parts.
Industry Standards
- • AMS 4928 - Aerospace Material Specification
- • ASTM B348 - Titanium Bar and Billet
- • MIL-T-9047 - Military Specification
Mechanical Properties
- • Tensile Strength: 950-1100 MPa
- • Yield Strength: 880-950 MPa
- • Elongation: 10-16%
- • Fatigue Strength: 510-540 MPa
Aerospace
- Engine Components: Compressor blades, disks, casings
- Structural Parts: Bulkheads, frames, landing gear
- Fasteners: High-strength bolts, pins, rivets
Medical Devices
- Orthopedic Implants: Hip, knee, spinal implants
- Dental Applications: Implants, crowns, bridges
- Surgical Instruments: Custom tools, guides
Automotive & Marine
- Racing Components: Connecting rods, valves, springs
- Marine Hardware: Propeller shafts, rigging, fittings
- Exhaust Systems: High-temperature, lightweight parts
Material Selection Criteria
Decision Matrix Approach
Selecting the optimal material requires systematic evaluation of multiple factors including mechanical requirements, environmental conditions, post-processing capabilities, and cost considerations.
Performance Requirements
- • Load-bearing capacity and stress distribution
- • Operating temperature range (-200°C to +800°C)
- • Fatigue life requirements (S-N curve analysis)
- • Impact resistance and toughness
Manufacturing Considerations
- • Support structure requirements and removal
- • Post-processing heat treatment needs
- • Surface finish specifications (Ra values)
- • Dimensional tolerance capabilities (±0.1mm typical)
Future Material Developments
The metal additive manufacturing industry continues advancing with new alloy developments, including high-entropy alloys, functionally graded materials, and specialized alloys optimized for specific DMLS processing parameters. Research focuses on enhancing properties like strength-to-weight ratios, thermal conductivity, and specialized functionalities for emerging applications.
Emerging Technologies
Next-Generation Alloys
- • High-entropy alloys for extreme environments
- • Functionally graded materials with variable properties
- • Magnetic and shape-memory alloys
- • Bioactive materials for medical applications
Process Improvements
- • In-situ alloying during printing
- • Multi-material gradient structures
- • Enhanced powder recycling methods
- • Real-time quality monitoring systems
