You don't need a 3D printer in order to do advanced manufacturing. 3D printed tools, jigs, and fixtures are a fantastic way to take advantage of the flexibility, customizability and production speed of additive manufacturing to level up a traditional manufacturing setup. Rapid iteration and geometries unique to 3D printing can streamline production processes and solve otherwise difficult or impossible manufacturing challenges.
Article Overview
- • Understanding the Significance of Jigs and Fixtures
- • Traditional vs. 3D Printed Manufacturing Aids
- • Material Selection for Optimal Performance
- • Design Considerations and Best Practices
- • 3D Printing Technologies for Jigs and Fixtures
- • Post-Processing and Finishing Techniques
- • Industry Applications and Case Studies
Understanding the Significance of Jigs and Fixtures
Jigs and fixtures are essential components that aid in achieving precision, consistency, and repeatability in various production processes. Before delving into the technical intricacies of 3D printing for jigs and fixtures, it's crucial to grasp the significance of these tools in the manufacturing landscape.
Manufacturing Jigs
Jigs are specialized tools used to guide and hold workpieces in a specific position during manufacturing. They ensure that each piece is processed or assembled accurately, reducing human errors and enhancing production efficiency.
Key Applications:
- • Drilling operations with precise hole placement
- • Welding alignment for complex assemblies
- • Component positioning during assembly
- • Quality control and inspection procedures
Manufacturing Fixtures
Fixtures are devices that securely hold a workpiece in place during machining, shaping, or inspection processes. They prevent any movement or vibration, which can lead to inaccuracies, and enable consistent and standardized results.
Critical Functions:
- • Workpiece immobilization during machining
- • Repeatable positioning for batch production
- • Support for complex geometries
- • Vibration dampening for precision operations
The Evolution: Traditional vs. 3D Printed Jigs and Fixtures
Traditionally, the fabrication of jigs and fixtures involved intricate machining processes that demanded time, resources, and skilled labor. These conventional methods often presented limitations in terms of design complexity and turnaround time. However, the advent of 3D printing has revolutionized this landscape by offering a new dimension of possibilities.
Design Freedom
Complex geometries that were once difficult or impossible to manufacture using traditional methods can now be easily realized with additive manufacturing.
- • Internal channels and cooling passages
- • Lattice structures for weight reduction
- • Organic shapes optimized for function
- • Multi-component integrated designs
Rapid Prototyping
3D printing enables rapid prototyping of jigs and fixtures. Engineers can quickly iterate through designs, identifying potential issues before final production.
- • Same-day prototype availability
- • Cost-effective design validation
- • Multiple iteration cycles per week
- • Reduced development risk
Mass Customization
Every manufacturing process is unique. With 3D printing, customization becomes viable, producing jigs and fixtures that align perfectly with specific requirements.
- • Part-specific fixture designs
- • Modular system compatibility
- • Variable batch size accommodation
- • Application-specific optimization

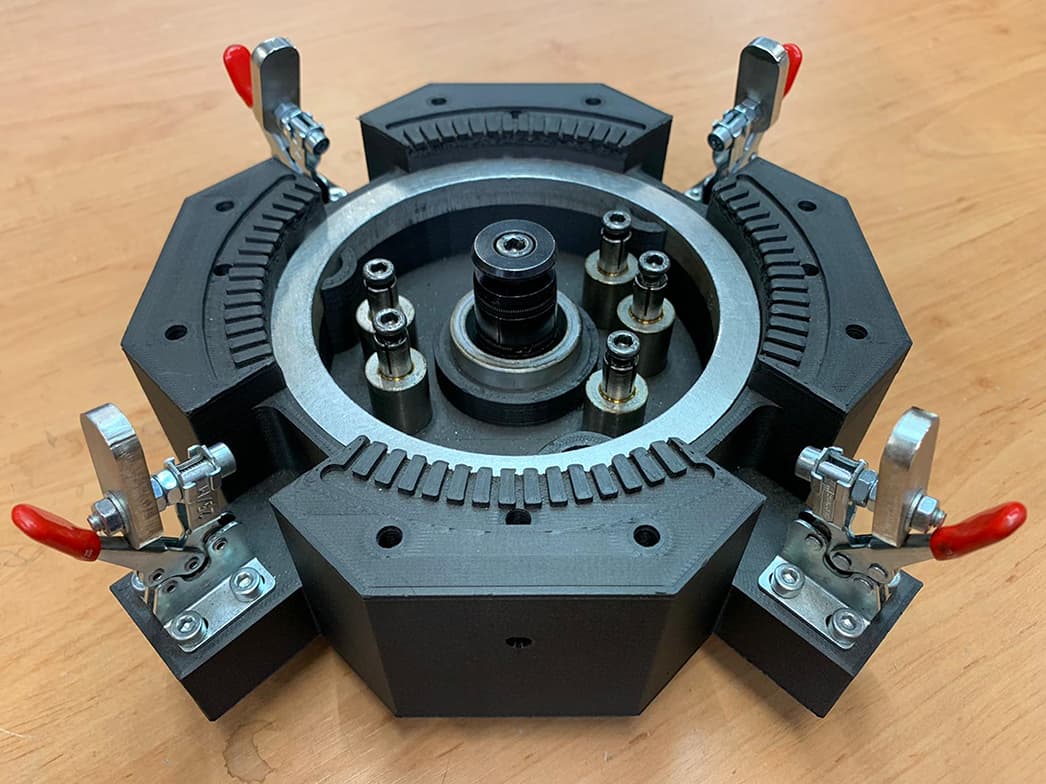

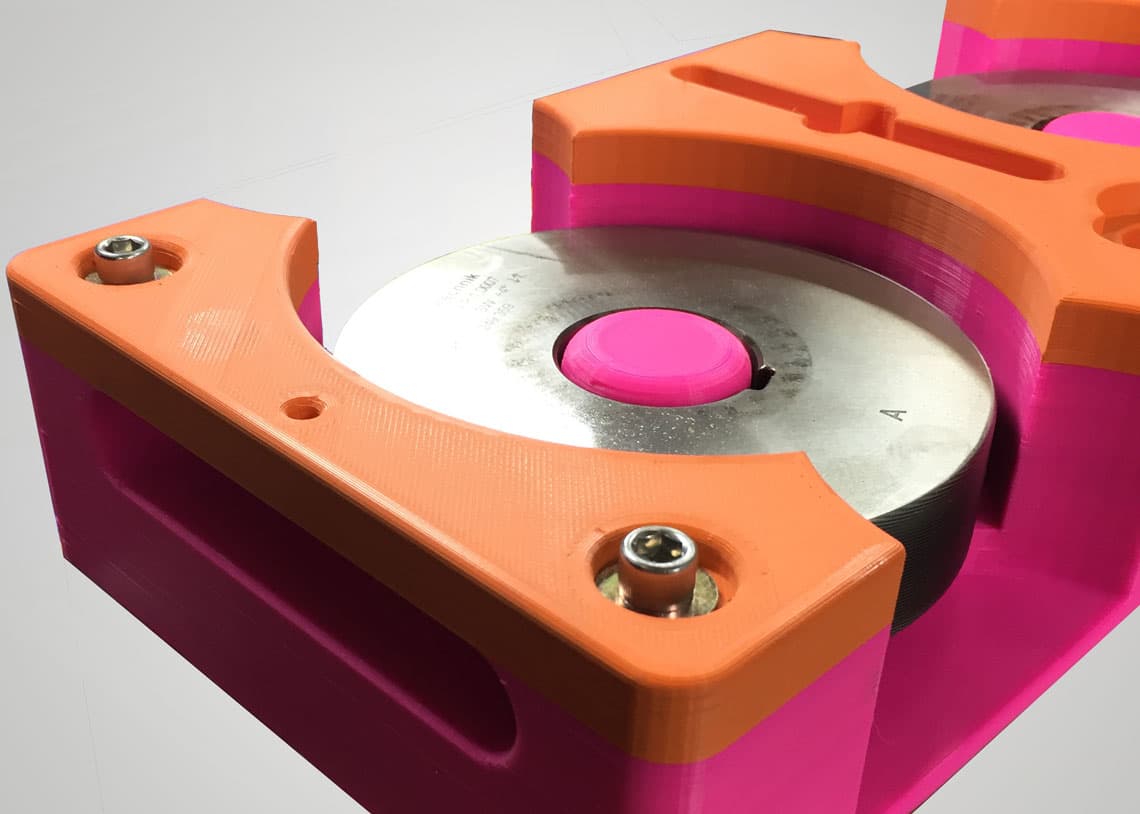

Highly complex and accurate jigs can be built with 3D printed parts, complete with mechanical hardware integration.
Material Selection for 3D Printed Jigs and Fixtures
Selecting the appropriate material for 3D printed jigs and fixtures is a critical decision that influences their performance, durability, and longevity. The choice should be based on application requirements, environmental conditions, and mechanical demands.
Engineering Thermoplastics
FDM Materials
- • ABS: Impact resistance, temperature stability up to 80°C
- • ASA: UV resistance, outdoor applications
- • Polycarbonate: High strength, 140°C heat tolerance
- • ULTEM 9085: Aerospace grade, flame retardant
SLS Materials
- • Nylon PA12: Excellent fatigue resistance, chemical stability
- • Glass-Filled Nylon: Enhanced stiffness, reduced thermal expansion
- • Carbon Fiber Nylon: Maximum strength-to-weight ratio
- • TPU 88A: Flexible applications, vibration dampening
| Material | Tensile Strength (MPa) | Heat Deflection (°C) | Best Applications |
|---|---|---|---|
| ABS (FDM) | 40-45 | 80-85 | General purpose jigs, assembly fixtures |
| Nylon PA12 (SLS) | 45-50 | 175-180 | High-cycle tooling, precision fixtures |
| Glass-Filled Nylon | 85-95 | 190-200 | Heavy-duty fixtures, machining jigs |
| ULTEM 9085 | 75-85 | 153-160 | Aerospace, certified applications |
Design Considerations for 3D Printed Jigs and Fixtures
Designing effective jigs and fixtures requires a deep understanding of the manufacturing process and workpiece characteristics. When leveraging 3D printing technology, certain considerations become even more pertinent for optimal performance.
Optimize Geometry
Exploit the freedom of design that 3D printing offers. Create intricate features that precisely accommodate the workpiece, ensuring secure placement and minimal movement.
- • Integrated locators and alignment features
- • Custom-fit clamping mechanisms
- • Built-in guide rails and stops
- • Ergonomic handling features
Weight Optimization
Excessive weight can lead to inefficiencies in handling and maneuvering jigs and fixtures. Utilize intelligent design strategies to reduce weight while maintaining structural integrity.
- • Lattice structures in non-critical areas
- • Strategic hollow sections
- • Topology optimization techniques
- • Material distribution analysis
Surface Finish Requirements
The surface finish of jigs and fixtures can impact their interaction with workpieces. Ensure that contact surfaces meet precision requirements.
- • Ra 6.3 μm for general applications
- • Ra 1.6 μm for precision contact surfaces
- • Post-processing considerations
- • Wear-resistant coatings
Modular Design Approach
Create modular jigs and fixtures that can be easily assembled and disassembled. This modularity facilitates maintenance, repair, and adaptability.
- • Standardized connection interfaces
- • Interchangeable component systems
- • Quick-release mechanisms
- • Scalable design platforms
3D Printing Technologies for Jigs and Fixtures
Several 3D printing techniques are suitable for producing jigs and fixtures, each with its own strengths and limitations. The choice of technique depends on factors such as material requirements, complexity, precision needs, and production volume.
Fused Deposition Modeling (FDM)
FDM extrudes thermoplastic material layer by layer to build objects. Ideal for producing larger jigs and fixtures with moderate precision requirements and excellent material variety.
Optimal Applications:
- • Assembly jigs for large components
- • Prototype tooling validation
- • Automotive production fixtures
- • Custom handling tools
Layer Resolution: 0.1-0.4mm
Build Volume: Up to 914 x 610 x 914mm
Typical Tolerance: ±0.3-0.5mm
Selective Laser Sintering (SLS)
SLS employs a laser to fuse powdered material layer by layer. Produces parts with excellent mechanical properties and complex geometries without support structures.
Optimal Applications:
- • High-precision drilling jigs
- • Complex internal geometries
- • Aerospace tooling applications
- • End-use production fixtures
Layer Resolution: 0.1-0.15mm
Build Volume: Up to 550 x 550 x 750mm
Typical Tolerance: ±0.2-0.3mm
Stereolithography (SLA)
SLA utilizes liquid resin cured layer by layer using ultraviolet light. Offers exceptional precision and smooth surface finishes for intricate jigs and fixtures.
Optimal Applications:
- • Precision inspection fixtures
- • Fine-feature positioning jigs
- • Medical device manufacturing
- • Prototype validation tooling
Layer Resolution: 0.025-0.1mm
Build Volume: Up to 1500 x 750 x 550mm
Typical Tolerance: ±0.1-0.2mm
Multi Jet Fusion (MJF)
MJF is known for fast print speeds and ability to produce functional parts with excellent mechanical properties. Perfect balance between speed and precision for production tooling.
Optimal Applications:
- • High-volume fixture production
- • Rapid tooling development
- • Industrial design validation
- • Batch production jigs
Layer Resolution: 0.08-0.12mm
Build Volume: Up to 380 x 284 x 380mm
Typical Tolerance: ±0.2-0.3mm
Post-Processing and Finishing
While 3D printing offers several advantages in terms of design and manufacturing, post-processing steps are often required to achieve the desired level of performance and aesthetics for jigs and fixtures.
Support Removal
After printing, support structures used during fabrication need careful removal to ensure the final jig or fixture retains its desired geometry and function.
- • Manual removal techniques
- • Soluble support dissolution
- • Ultrasonic cleaning
- • Surface finishing
Surface Smoothing
Depending on the printing technique and material used, surface finish might need additional smoothing to meet functional requirements.
- • Mechanical sanding and polishing
- • Chemical smoothing processes
- • Vapor polishing techniques
- • Precision machining operations
Assembly & Integration
If the jig or fixture is designed to be modular or integrated with other components, proper assembly and integration steps are crucial.
- • Hardware insertion and fitting
- • Alignment verification
- • Functional testing protocols
- • Performance validation
Industry Applications and Performance Benefits
The ability to rapidly prototype, customize, and create complex geometries has transformed how manufacturers approach the design and production of these critical tools across various industries.
Aerospace Manufacturing
Critical applications requiring certified materials and precise tolerances for aircraft component assembly and quality control processes.
- • Composite layup tooling with complex geometries
- • Engine component inspection fixtures
- • Assembly jigs for critical flight hardware
- • ULTEM 9085 certified material applications
Automotive Production
High-volume production environments benefiting from rapid tooling development and cost-effective fixture solutions.
- • Engine assembly positioning fixtures
- • Body panel alignment jigs
- • Quality control inspection tooling
- • Prototype validation equipment
Quantified Performance Benefits
Development Speed
- • 75% reduction in tooling development time
- • Same-day prototype availability
- • 3-5 design iterations per week vs. monthly
- • 60% faster time-to-production
Cost Effectiveness
- • 40-70% cost reduction for low-volume tooling
- • Elimination of minimum order quantities
- • 85% reduction in design change costs
- • On-demand manufacturing capabilities
Transforming Manufacturing Through Advanced Tooling
The integration of 3D printing technology with the realm of jigs and fixtures has ushered in a new era of manufacturing efficiency and precision. As additive manufacturing continues to evolve, its impact on manufacturing aids will remain profound, leading to enhanced production processes across industries.

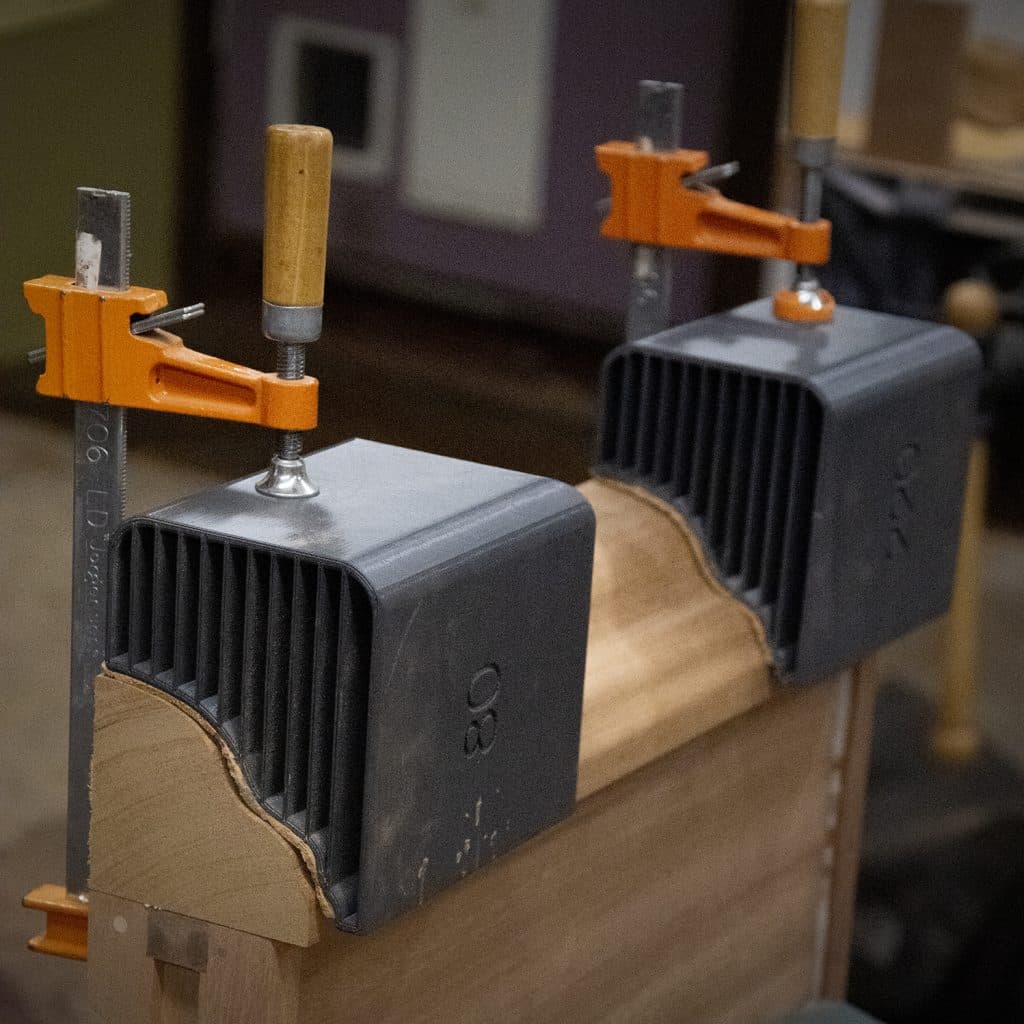

"Cutting edge meets traditional. 3D printing makes it easy to bring complex forms to skilled fabrication workflows, revolutionizing how we approach manufacturing challenges."
By understanding the material options, design considerations, and appropriate printing techniques, manufacturers can harness the full potential of 3D printing to elevate their production capabilities to unprecedented heights. The future of manufacturing tooling lies in the seamless integration of digital design freedom with traditional manufacturing expertise.
