Advanced manufacturing engineering techniques for large component assembly
Build volume constraints represent one of the most significant engineering challenges in industrial additive manufacturing. When component geometry exceeds printer build envelopes, strategic part segmentation becomes essential. While large format systems offer expanded capabilities, material selection, precision requirements, or cost considerations often necessitate splitting approaches.
This comprehensive guide explores advanced techniques for part splitting, precision assembly methods, and professional finishing approaches that maintain dimensional accuracy and structural integrity across multi-component assemblies.
Engineering Topics Covered
- • Strategic seam placement methodologies
- • Dimensional accuracy and tolerance management
- • Advanced joinery and fastening systems
- • Precision assembly jig design
- • Professional finishing and surface preparation
- • Multi-technology integration strategies
- • Quality control and inspection protocols
- • Cost-benefit analysis frameworks
Strategic Seam Placement Methodologies

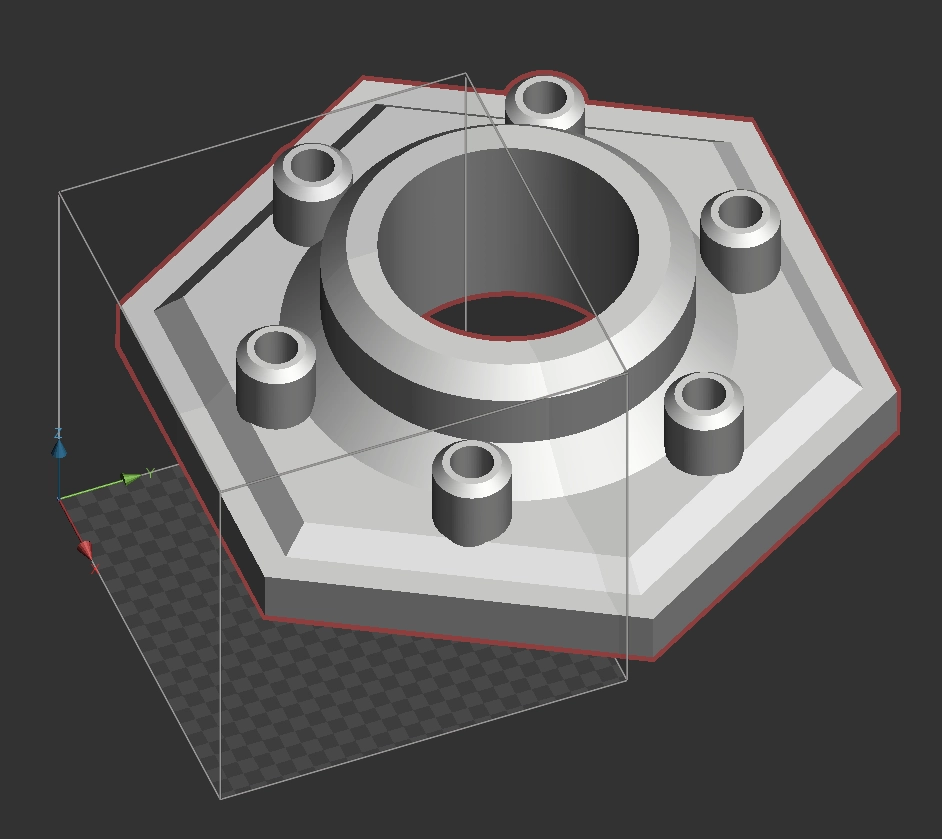

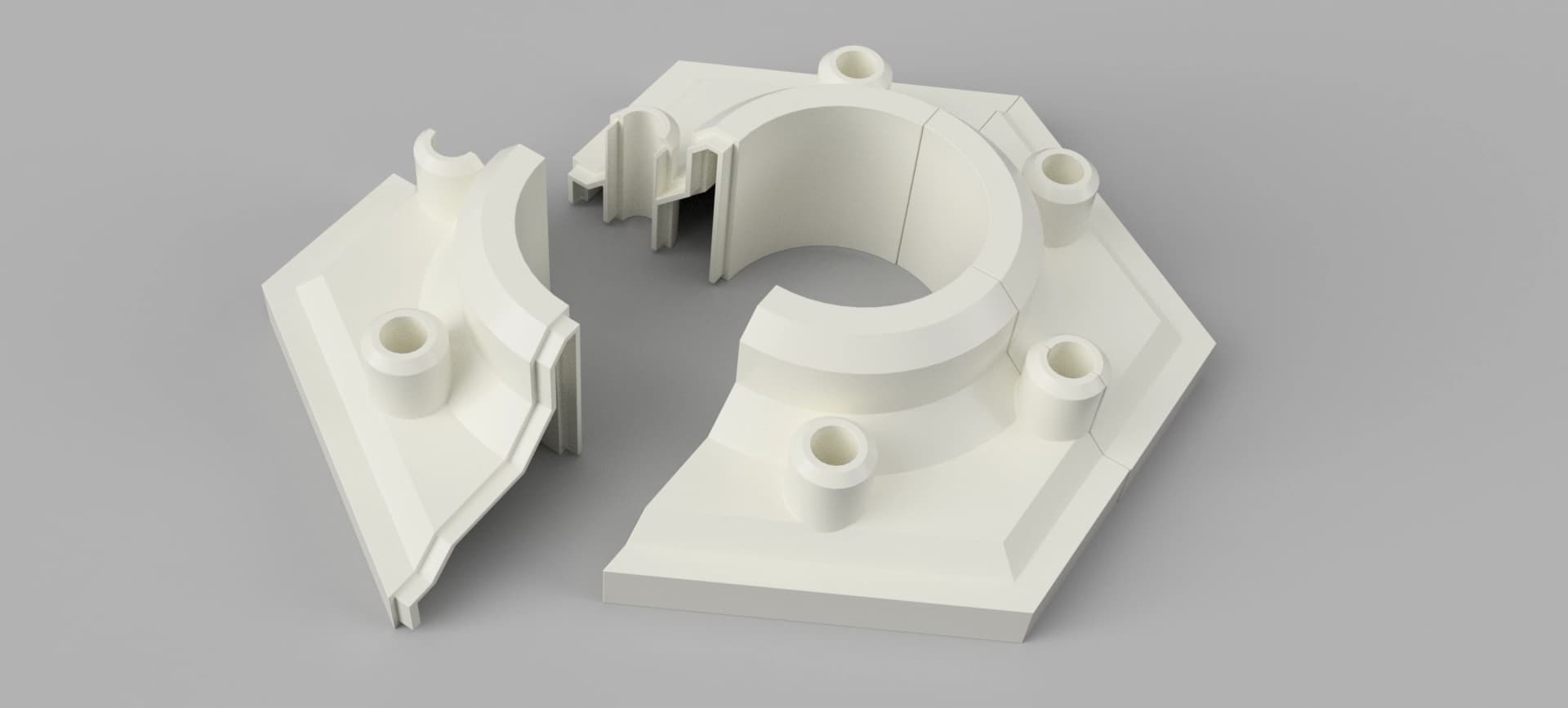

Strategic seam placement examples demonstrating optimal split locations for different geometries
Optimal seam placement requires comprehensive analysis of geometric, mechanical, and manufacturing constraints. Engineers must evaluate multiple factors simultaneously to determine split locations that minimize assembly complexity while maintaining structural performance.
Primary Placement Criteria
- • Minimize total seam length and complexity
- • Align with natural geometric boundaries
- • Consider stress concentration factors
- • Optimize for assembly accessibility
Aesthetic Considerations
For components requiring high surface quality, seam placement must prioritize visual continuity. Strategic positioning in less visible areas or regions conducive to post-processing operations significantly impacts final appearance quality.
Surface Quality Guidelines
Position seams in areas with natural shadow lines, geometric transitions, or regions that will be machined post-assembly. Avoid placing seams across critical aesthetic surfaces or areas requiring Class A surface finishes.
Mechanical Performance Analysis
Seam locations create stress concentration points that can significantly affect component performance under load. Finite element analysis should evaluate stress distribution across proposed split lines to ensure adequate safety factors.
Load Path Considerations
- • Avoid intersecting primary load paths
- • Consider fatigue loading scenarios
- • Evaluate impact and shock loading
- • Account for thermal expansion differences
Reinforcement Strategies
- • Integrated backing plates or ribs
- • Mechanical fastener distribution
- • Adhesive joint optimization
- • Composite reinforcement integration
Manufacturing Process Optimization
Split placement directly impacts manufacturing efficiency across multiple process parameters. Strategic decisions can reduce support material requirements, optimize build orientation, and minimize post-processing operations.
Multi-Technology Integration
Advanced projects may benefit from combining multiple additive manufacturing technologies within a single assembly. This approach optimizes material properties, surface quality, and dimensional accuracy for specific component regions.
High-Detail Regions
Stereolithography (SLA) for ultra-high resolution features, complex geometries, and superior surface finish requirements.
Structural Components
Fused Deposition Modeling (FDM) with engineering thermoplastics for high-strength structural elements and large-volume components.
