Advanced Manufacturing: DMLS technology enables the production of complex metal components with exceptional precision, opening new possibilities for aerospace, medical, and automotive applications.
Introduction to DMLS Technology
Direct Metal Laser Sintering (DMLS) represents one of the most advanced forms of additive manufacturing available today. This powder bed fusion technology enables the production of complex metal parts with exceptional precision and mechanical properties comparable to traditionally manufactured components.
Industrial DMLS equipment enables precise metal part production with exceptional quality control
How DMLS Works
The DMLS process begins with a digital 3D model that is sliced into thin cross-sectional layers. A high-powered laser then selectively melts and fuses metallic powder particles according to each layer's geometry. This process is repeated layer by layer until the complete part is formed.
Key Process Parameters
- Layer Thickness: Typically 20-40 microns for optimal surface finish
- Laser Power: 200-400 watts depending on material and geometry
- Scan Speed: Optimized for each material to achieve proper fusion
- Powder Characteristics: Particle size distribution critical for quality
Material Capabilities
DMLS technology supports a wide range of metal alloys, each optimized for specific applications:

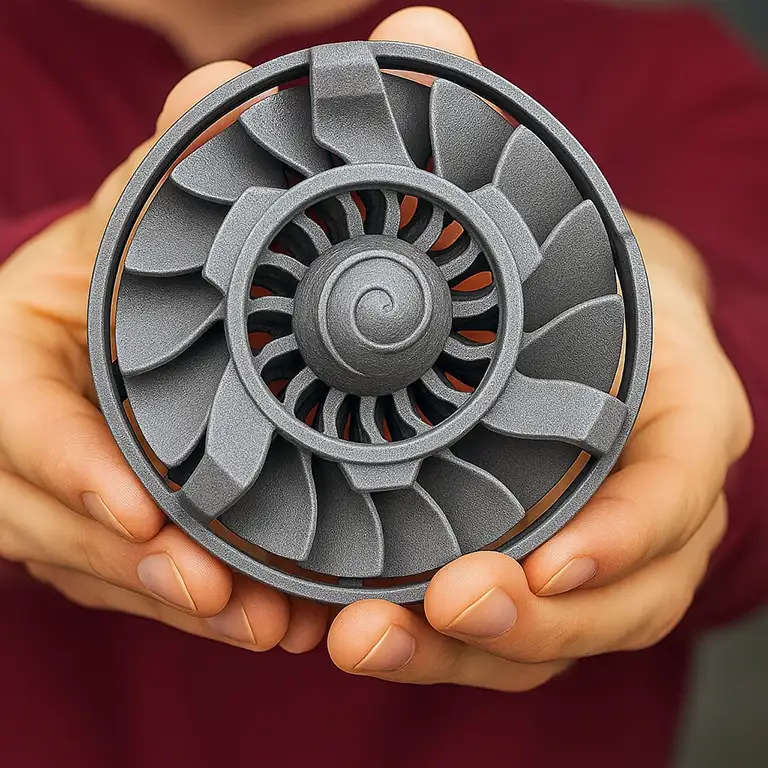

Ti-6Al-4V titanium components showcase the exceptional detail and surface quality achievable with DMLS
Aerospace Alloys
- Ti-6Al-4V: Excellent strength-to-weight ratio for aerospace components
- Inconel 718: High-temperature performance for engine applications
- AlSi10Mg: Lightweight aluminum alloy with good mechanical properties
Medical Grade Materials
- Ti-6Al-4V ELI: Biocompatible titanium for implants
- CoCrMo: Cobalt chrome for dental and orthopedic applications
- 316L Stainless Steel: Corrosion-resistant surgical instruments
Design Considerations
Successful DMLS part design requires understanding the unique capabilities and constraints of the technology:
Support structures are essential for DMLS parts with overhanging features and complex geometries
Support Structures
Unlike polymer-based 3D printing, DMLS requires support structures for:
- Overhanging features greater than 45 degrees
- Heat dissipation during the build process
- Preventing distortion due to thermal stresses
Minimum Feature Sizes
DMLS can achieve impressive detail resolution:
| Feature | Minimum Size | Notes |
|---|---|---|
| Wall Thickness | 0.4mm | For most materials |
| Hole Diameter | 0.5mm | Without supports |
| Surface Finish | Ra 6-10 μm | As-built, improved with post-processing |
"DMLS technology has revolutionized our approach to complex aerospace components. We can now manufacture parts with internal cooling channels and lattice structures that were impossible with traditional methods."
Complex Geometries and Topology Optimization

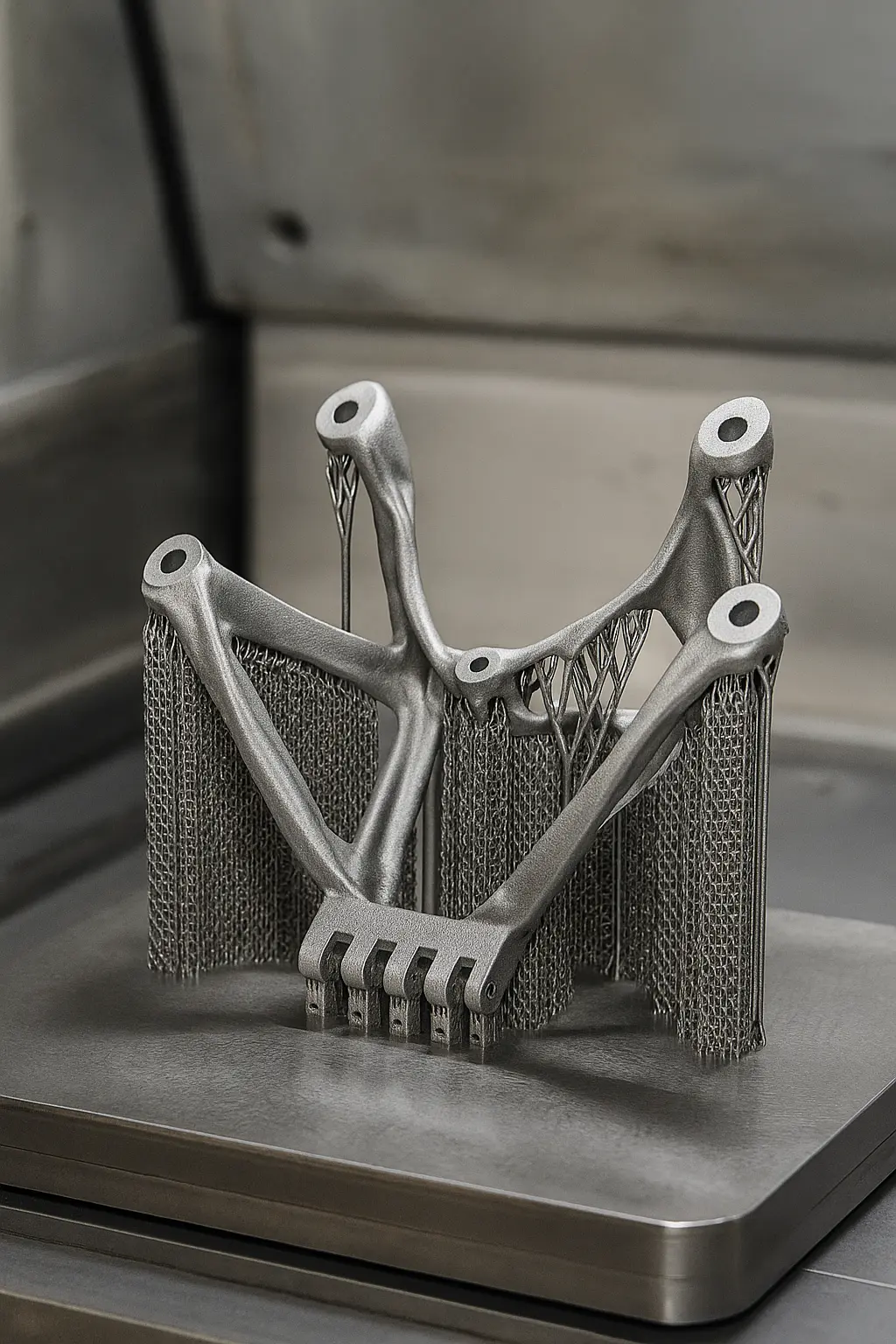

Topology optimization enables the creation of lightweight structures with optimal strength-to-weight ratios
One of DMLS technology's greatest advantages is the ability to produce complex internal geometries and topology-optimized structures that would be impossible with traditional manufacturing methods.
Post-Processing Requirements
Most DMLS parts require post-processing to achieve final specifications:
Heat Treatment
Stress relief annealing is typically required to:
- Reduce residual stresses from the build process
- Improve mechanical properties
- Enhance dimensional stability
Surface Finishing
Depending on application requirements:
- Machining: For critical dimensions and surface finishes
- Shot Peening: To improve fatigue resistance
- Chemical Etching: For smooth surface finishes
- Polishing: For medical and optical applications
Quality Control and Testing
Rigorous quality control is essential for DMLS parts, especially in critical applications:
In-Process Monitoring
- Layer-by-layer inspection systems
- Thermal monitoring during builds
- Powder quality verification
Post-Build Testing
- Dimensional inspection using CMM
- Mechanical property testing
- Non-destructive testing (NDT)
- Metallurgical analysis
Industry Applications
DMLS technology has found success across multiple industries:

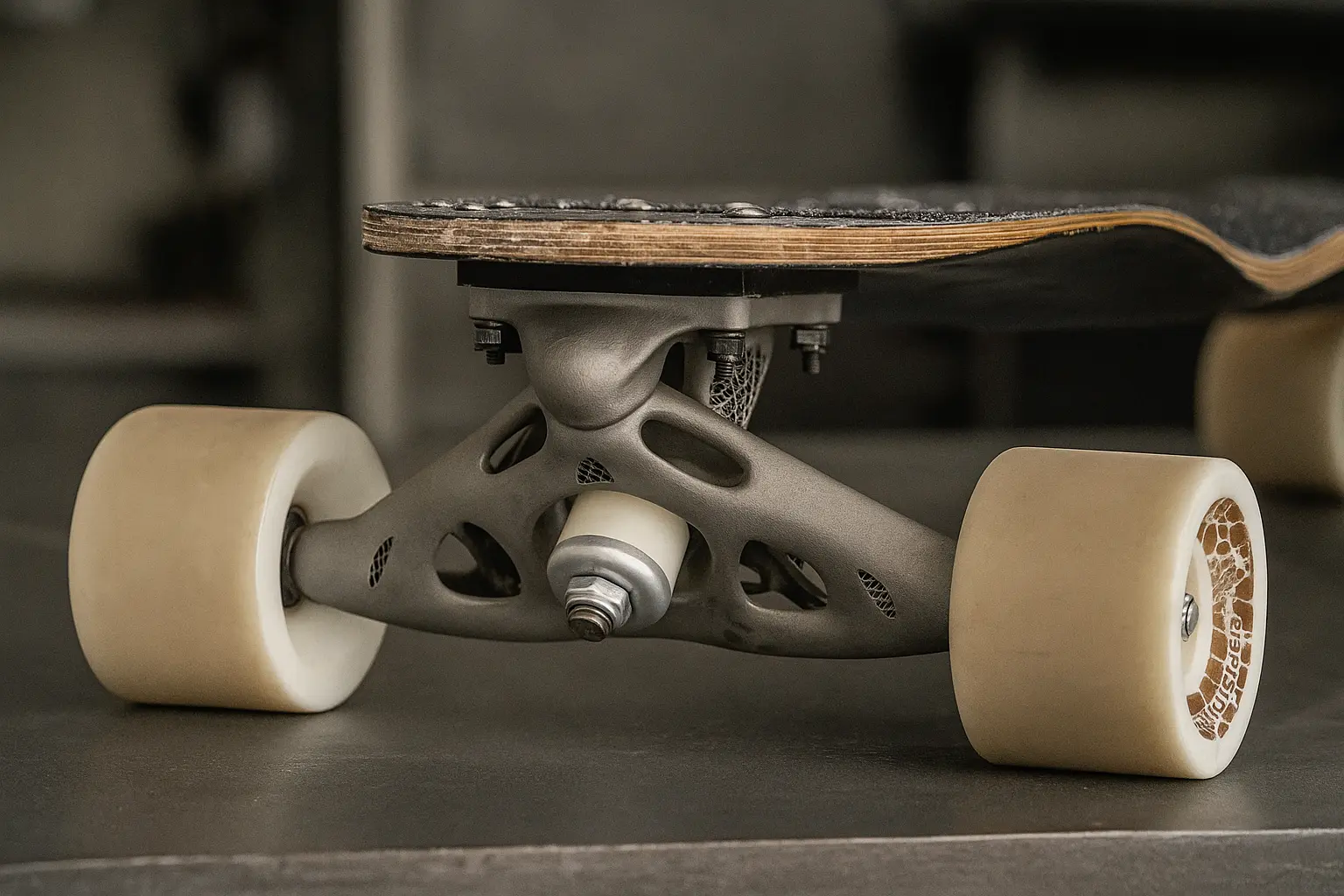

High-performance skateboard truck manufactured in Ti-6Al-4V, demonstrating DMLS capability for consumer applications
Aerospace
- Fuel nozzles with complex internal geometries
- Lightweight brackets and housings
- Rapid prototyping of engine components
Medical
- Patient-specific implants
- Surgical instruments
- Dental prosthetics
Automotive
- Performance cooling components
- Customized tooling and fixtures
- Low-volume production parts
Cost Considerations
While DMLS offers unique capabilities, cost optimization requires careful consideration:
Cost Drivers
- Material Costs: Metal powders are significantly more expensive than polymers
- Build Time: Complex geometries increase processing time
- Post-Processing: Can represent 50% or more of total cost
- Quality Requirements: Aerospace/medical standards increase inspection costs
Cost Optimization Strategies
- Optimize part orientation for minimal support material
- Nest multiple parts in single build volume
- Design for minimal post-processing requirements
- Consider hybrid manufacturing approaches
Future Developments
DMLS technology continues to evolve with several exciting developments:
- New Materials: Expanded alloy options and improved powder characteristics
- Larger Build Volumes: Enabling larger part production
- Faster Build Speeds: Multi-laser systems and improved scanning strategies
- In-Situ Monitoring: Real-time quality control and adaptive processing
Getting Started with DMLS
For organizations considering DMLS adoption, we recommend:
- Design Evaluation: Assess if your parts benefit from DMLS capabilities
- Material Selection: Choose appropriate alloys for your application
- Partner Selection: Work with experienced DMLS service providers
- Prototype Testing: Validate performance before production commitment
Ready to explore DMLS for your next project? Our team of application engineers can help you evaluate the technology's potential for your specific requirements and guide you through the entire development process. Contact us at sales@forgelabs.com to get started.
