3D Systems vs Formlabs: Comprehensive SLA 3D Printer Comparison for Industrial Applications
Technology Comparison18 min read

3D Systems vs Formlabs: Comprehensive SLA 3D Printer Comparison for Industrial Applications

Detailed technical comparison of 3D Systems ProJet 7000 and Formlabs Form 3L stereolithography printers, analyzing print setup, speed, post-processing, accuracy, and total cost of ownership for high-volume manufacturing.

PW

Patrick Wirt

SLA Production Manager

Industrial SLA Technology Analysis

When selecting stereolithography equipment for high-volume manufacturing, understanding the fundamental differences between industrial and desktop technologies becomes critical for operational success. This comprehensive comparison examines real-world performance metrics that directly impact production efficiency and part quality.

The debate between industrial-grade 3D Systems stereolithography printers and desktop Formlabs systems represents a fundamental choice in additive manufacturing strategy. While initial purchase price often dominates equipment selection discussions, total cost of ownership, throughput capabilities, and quality consistency provide more accurate assessments of long-term value proposition.

This analysis responds to Formlabs' assertion that high-end SLA capabilities no longer require $200,000 investments, examining whether desktop systems can truly match industrial performance for demanding applications in medical device manufacturing, aerospace, and other precision-critical industries.

Stereolithography Technology Fundamentals

Understanding the architectural differences between inverted and non-inverted stereolithography systems provides essential context for performance analysis. These fundamental design approaches create cascading effects throughout the entire manufacturing workflow, influencing everything from support requirements to post-processing complexity.

Inverted SLA Technology (Formlabs)

Low Force Stereolithography

Parts suspend from build platform and cure upside down, creating significant peeling forces during layer separation from flexible tank bottom.

Material Efficiency
  • • Minimal resin volume requirements
  • • Rapid material changeover capability
  • • Hot-swappable resin cartridge system
  • • Lower initial material investment
Support Requirements

Heavy support structures necessary to withstand gravitational forces and peeling stresses during printing process.

Non-Inverted SLA Technology (3D Systems)

Vat Photopolymerization

Parts build right-side up with platform descending into resin vat, eliminating peeling forces and gravitational stresses on developing parts.

Production Considerations
  • • Full vat volume requirements ($10,000+ resin investment)
  • • Material-dedicated machine configurations
  • • Optimized for high-volume single-material production
  • • Extended continuous operation capability
Support Optimization

Minimal support structures due to liquid resin stabilization, enabling ultra-thin touchpoints and self-supporting geometries.

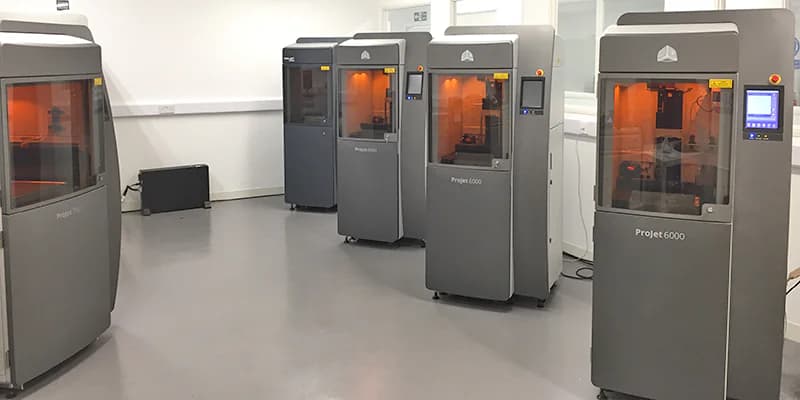

Industrial stereolithography laboratory featuring multiple 3D Systems ProJet 6000 and 7000 machines

High-throughput stereolithography laboratory with dedicated 3D Systems ProJet 6000 and 7000 systems

Comprehensive Performance Analysis

Direct comparison using identical test geometries reveals significant performance differences across critical manufacturing metrics. Our analysis evaluated both systems using standardized test parts to ensure objective assessment of capabilities and limitations.

Print Setup and Workflow Efficiency

Preprocessing software capabilities directly impact production throughput and operator efficiency. The sophistication of tray preparation tools becomes particularly critical for high-volume manufacturing where build density optimization significantly affects per-part costs.

3D Systems 3D Sprint Software

Advanced Automation Features
  • • Automated part repair and geometry validation
  • • Customizable auto-orientation with optimization parameters
  • • Intelligent array generation with collision detection
  • • Combined support generation for tray-level optimization
Production Optimization

Advanced algorithms prevent support intersection between parts, enabling maximum build density without manual intervention.

Setup Time: 56 seconds

Formlabs PreForm Software

Manual Process Requirements
  • • Non-customizable auto-orientation requiring manual adjustment
  • • Individual part support generation (no combine function)
  • • Support intersection requires increased part spacing
  • • No automated geometry repair capabilities
Workflow Limitations

Support conflicts between parts necessitate either reduced build density or extensive manual editing for optimization.

Setup Time: 3 minutes 48 seconds

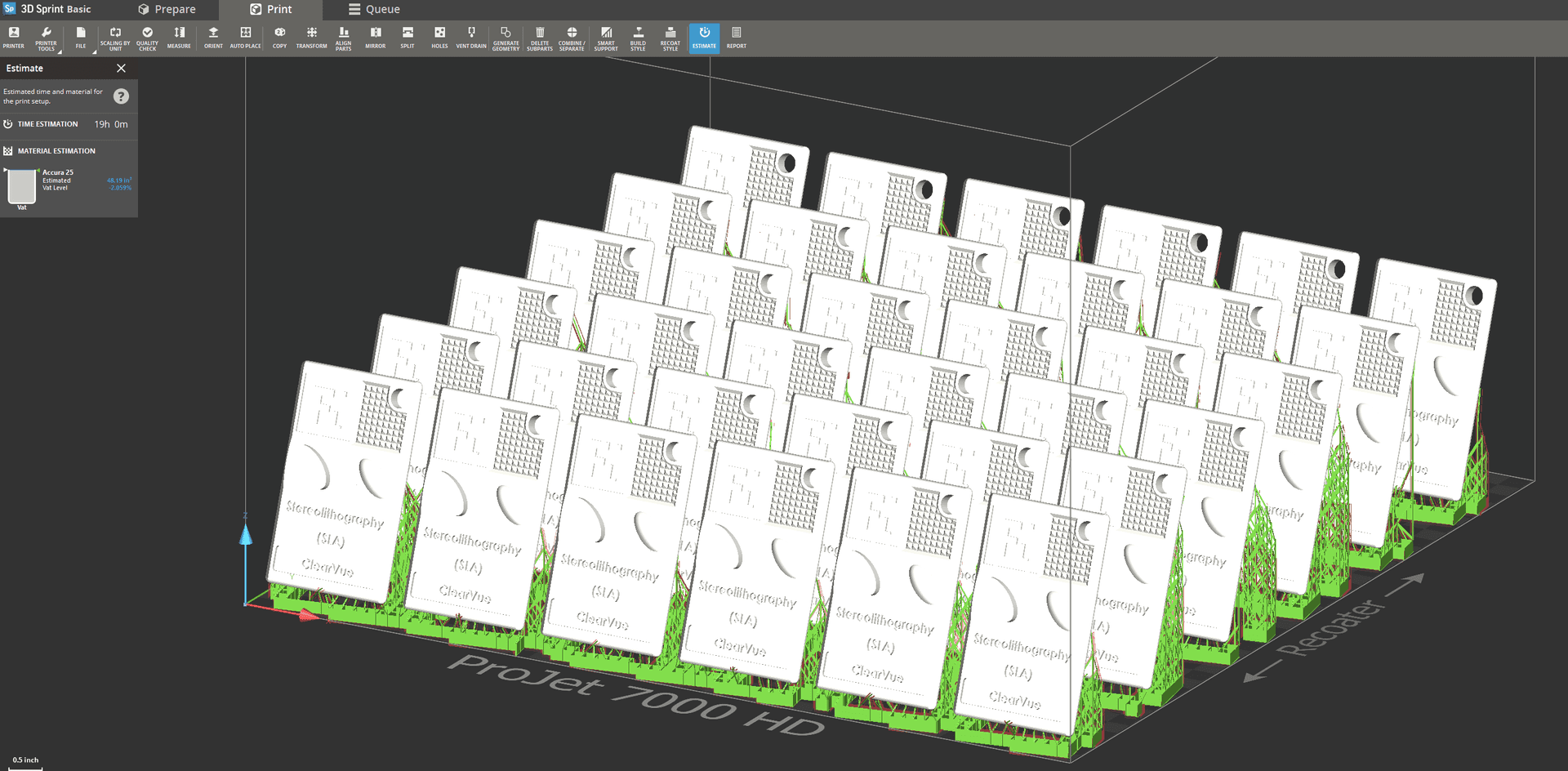

3D Sprint software interface showing efficient dense production tray preparation with automated support optimization

3D Sprint software enables efficient creation of dense production trays with intelligent support optimization

Production Speed and Throughput Analysis

Print speed comparisons using identical geometries, orientations, and layer heights reveal substantial differences in production throughput. These variations compound significantly in high-volume manufacturing environments where time-to-market and production capacity directly impact competitiveness.

Production Speed Comparison

Formlabs Form 3L
Print Time: 68 hours
Build Density: 5×5 array (reduced due to support conflicts)
Throughput: 25 parts per build
Time per Part: 2.72 hours
3D Systems ProJet 7000
Print Time: 19 hours
Build Density: 6×6 array (optimized support spacing)
Throughput: 36 parts per build
Time per Part: 0.53 hours

Performance Advantage: 3D Systems delivers 5.1× faster production speed per part while achieving 44% higher build density, resulting in 8.1× greater overall throughput capacity.

Post-Processing Requirements and Labor Impact

Post-processing labor represents a significant cost component in stereolithography manufacturing. Support removal complexity, surface finishing requirements, and part handling procedures vary dramatically between inverted and non-inverted systems, creating substantial differences in total processing time and skilled labor requirements.

3D Systems Post-Processing

Minimal Support Structures
  • • 0.1mm touchpoint size enables finger removal
  • • Self-supporting geometries eliminate most supports
  • • No tool requirements for standard cleanup
  • • Transparent parts maintain clarity without sanding
Processing Efficiency
Time per Part: 2 minutes 54 seconds
Material Usage: 31 grams (including supports)
Surface Quality: No visible support marks

Formlabs Post-Processing

Extensive Support Removal
  • • Large touchpoints require careful trimming tools
  • • Heavy support structures necessary for stability
  • • Complete surface sanding required for smooth finish
  • • Transparent parts lose clarity during finishing
Labor Intensive Process
Time per Part: 8 minutes 55 seconds
Material Usage: 47 grams (including supports)
Surface Quality: Visible support nubs requiring finishing

Post-Processing Impact Analysis

The 207% longer post-processing time for Formlabs parts significantly impacts labor costs and production capacity. For high-volume manufacturers processing thousands of parts monthly, this translates to substantial differences in staffing requirements and operational efficiency.

Material Efficiency

3D Systems parts use 34% less material due to minimal support requirements, reducing material costs and waste generation.

Quality Considerations

Extensive sanding requirements for Formlabs parts create risk of dimensional changes and surface quality variation between operators.

Dimensional Accuracy and Quality Control

Dimensional accuracy becomes critical for applications requiring precise fits, assemblies, or regulatory compliance. The ability to maintain consistent tolerances across large build volumes and multiple production runs directly impacts reject rates and manufacturing reliability.

3D Systems Accuracy Control

Calibration Capabilities
  • • Monthly scale bar calibration protocols
  • • Manual offset adjustments for each axis
  • • Machine-specific compensation algorithms
  • • Traceable dimensional validation procedures
Performance Specifications
Standard Tolerance: ±0.2mm
Measured Accuracy: 0.1mm deviation
Repeatability: Consistent across build volume

Formlabs Accuracy Limitations

Fixed System Configuration
  • • No user-accessible calibration controls
  • • Factory-set parameters cannot be adjusted
  • • Limited quality assurance capabilities
  • • Tolerance degradation over larger geometries
Performance Characteristics
Measured Accuracy: 0.21mm deviation
Support Impact: Potential dimensional distortion
Large Part Variation: Increased tolerance accumulation

Total Cost of Ownership Analysis

While initial equipment cost creates obvious differences between systems, comprehensive total cost of ownership analysis must consider operational efficiency, labor requirements, material usage, and throughput capacity over typical equipment lifecycles.

Comprehensive Cost Comparison

MetricFormlabs Form 3L3D Systems ProJet 7000
Initial Investment$10,999$200,000
Build Volume13.2 × 7.9 × 11.8 in15 × 15 × 10 in
Print Time (identical tray)68 hours19 hours
Post-Processing per Part8m 55s2m 54s
Material per Part (with supports)47 grams31 grams
Dimensional Accuracy±0.21mm±0.1mm
Throughput AdvantageBaseline8.1× higher

Key Performance Insights

  • • Industrial SLA systems deliver 8.1× higher overall throughput through combined speed and density advantages
  • • Post-processing time differences of 207% significantly impact labor costs and production capacity
  • • Non-inverted technology eliminates support-related quality issues while reducing material consumption
  • • Calibration capabilities enable consistent dimensional accuracy across production runs
  • • Total cost of ownership favors industrial systems for high-volume applications despite higher initial investment
  • • Technology selection should prioritize operational requirements over initial purchase price

The comparison between 3D Systems and Formlabs stereolithography technologies reveals fundamental differences in design philosophy and target applications. While desktop systems offer accessibility and material flexibility, industrial platforms provide the throughput, accuracy, and operational efficiency required for high-volume manufacturing success. Understanding these distinctions enables informed technology investments aligned with specific production objectives and quality requirements.
